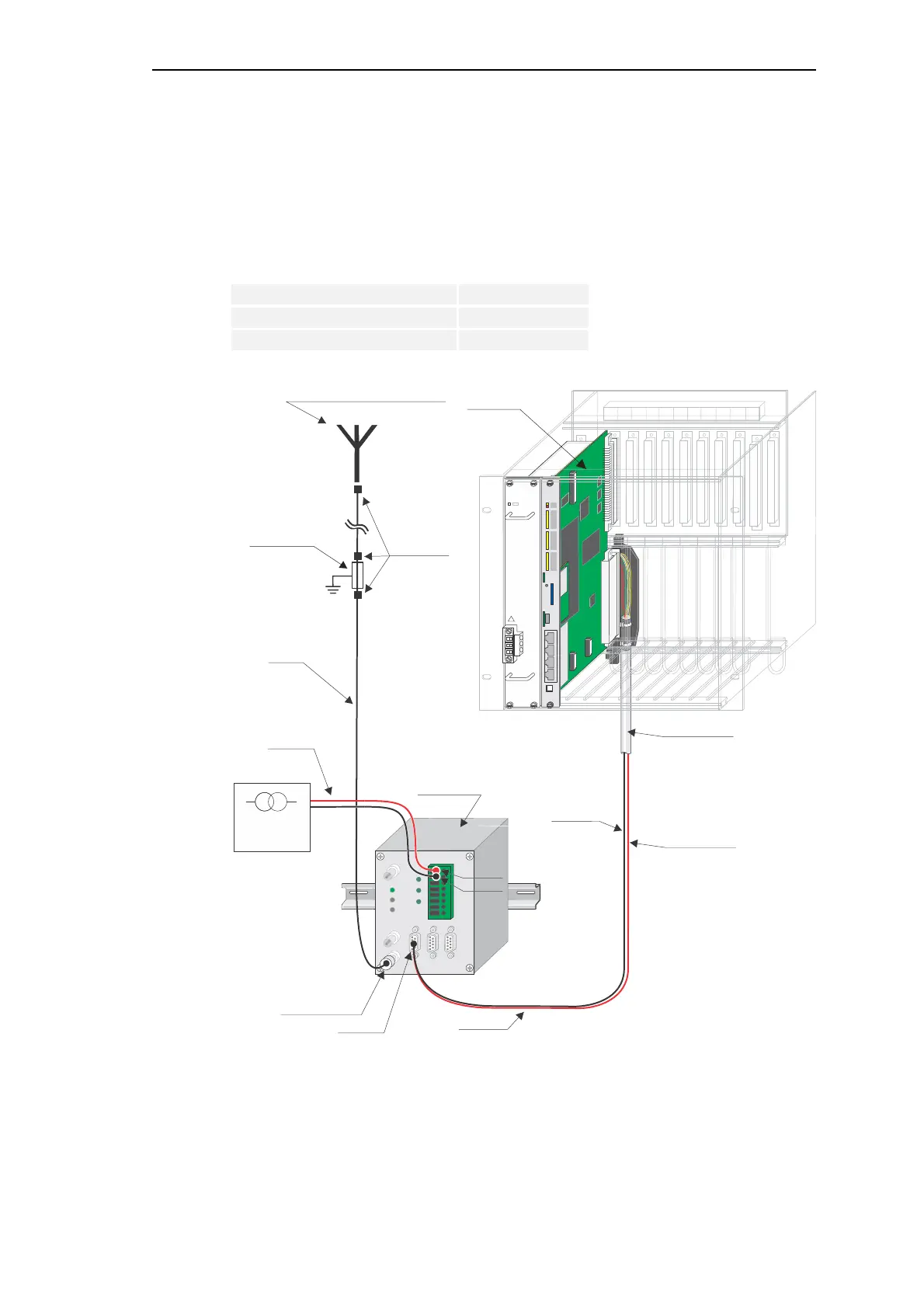

1.5.2.2 Wiring for the Receipt of the Serial Time Signal
The serial time signal is supplied on the COM 0 interface on the front panel of the GPS164 re-
ceiver.
The necessary adjustments for the SAT-STRING must be made with software GPSMON32 as
follows:
Format 7E2
Baud Rate 2400
Serial time signal per second
Accessories see SICAM AK 3 System Description.
4
3
2
1
4
4
3
2
1
SICAM AK
PS-263x
CP-2016
CM-2890
RG58
24 VDC
SYNC
COM 0
Ub-
Ub+
CP-2016
Lightning
protection
N connector
BNC
connector
RG58
GPS164
receiver
GPS167 antenna/converter
Power
Supply
SYNC1+
X100:a2
ye/whbu
(or
SYNC2+
X100:c2
gn/whbu)
SYNC_GND
X100:a4
bk/whbu
(or
SYNC_GND
X100:c4
bu/whye)
