Siemens SICAM AK 3 User Manual

System Components
SICAM RTUs, SICAM AK 3 User Manual 95
DC2-028-2.03, Edition 07.2016
2.2.2 CP-2019/PCCX26

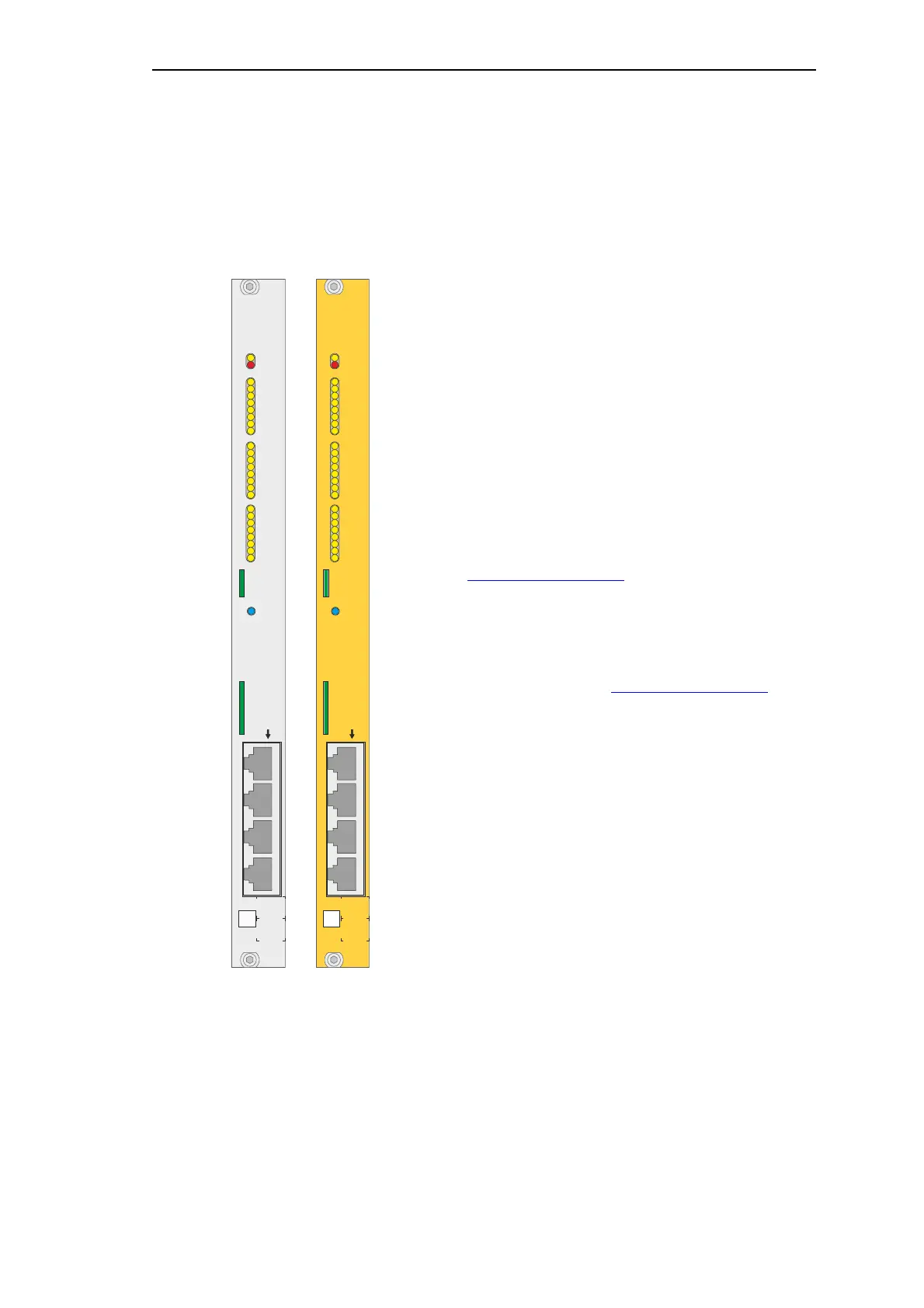

2.2.2.1 Front Panel
Standard Safety
RY: Board ready
ER: Error
W: Warning
BBD: Module failure
INT: Internal error
EXT: External error
ACT: CPU active
CPY: Parameter safety operation / FW is loaded
SF: Safety Function
HLT: FW shut down / Board shut down
LK X0: \
PK X0: |
ACT0: |
ER0: \ LED display for protocol element 0 and 1
LK X1: / Meaning see chapter „Service“, section
PK X1: | “Operation And Display Elements”
ACT1: |
ER1: /
OH X2: \
RTX X2: |
ACT2: |
ER2: \ LED display for protocol element 2 and 3
OH X3: / meaning dependent on the installed protocol element
RTX X3: | see chapter „Service“, section “Operation And Display Elements”
ACT3: |
ER3: /
RES: Reset
X0: Interface protocol element 0
X1: Interface protocol element 1
X2: Interface protocol element 2
X3: Interface protocol element 3
S/N: Serial number
SI2: Position for label with serial number of protocol element 2
SI3: Position for label with serial number of protocol element 3
CP-2019
RY
S/N
ER
W
BBD
INT
EXT
ACT
CPY
HLT
LK X0
PK X0
ACT0
ER0
LK X1
PK X1
ACT1
ER1
RES
X0
X1
X2
X3
SI3
SI2
OH X2
RTX X2
ACT2
ER2
OH X3
RTX X3
ACT3
ER3
CP-2019
RY
S/N
ER
W
BBD
INT
EXT
ACT
CPY
HLT
LK X0
PK X0
ACT0
ER0
LK X1
PK X1
ACT1
ER1
RES
X0
X1
X2
X3
SI3
SI2
OH X2
RTX X2
ACT2
ER2
OH X3
RTX X3
ACT3
ER3
SF
