1.8.3 Removing Peripheral Cable
Caution
The peripheral modules must NOT be installed in the board rack during the fitting of the associated pe-
ripheral cable.

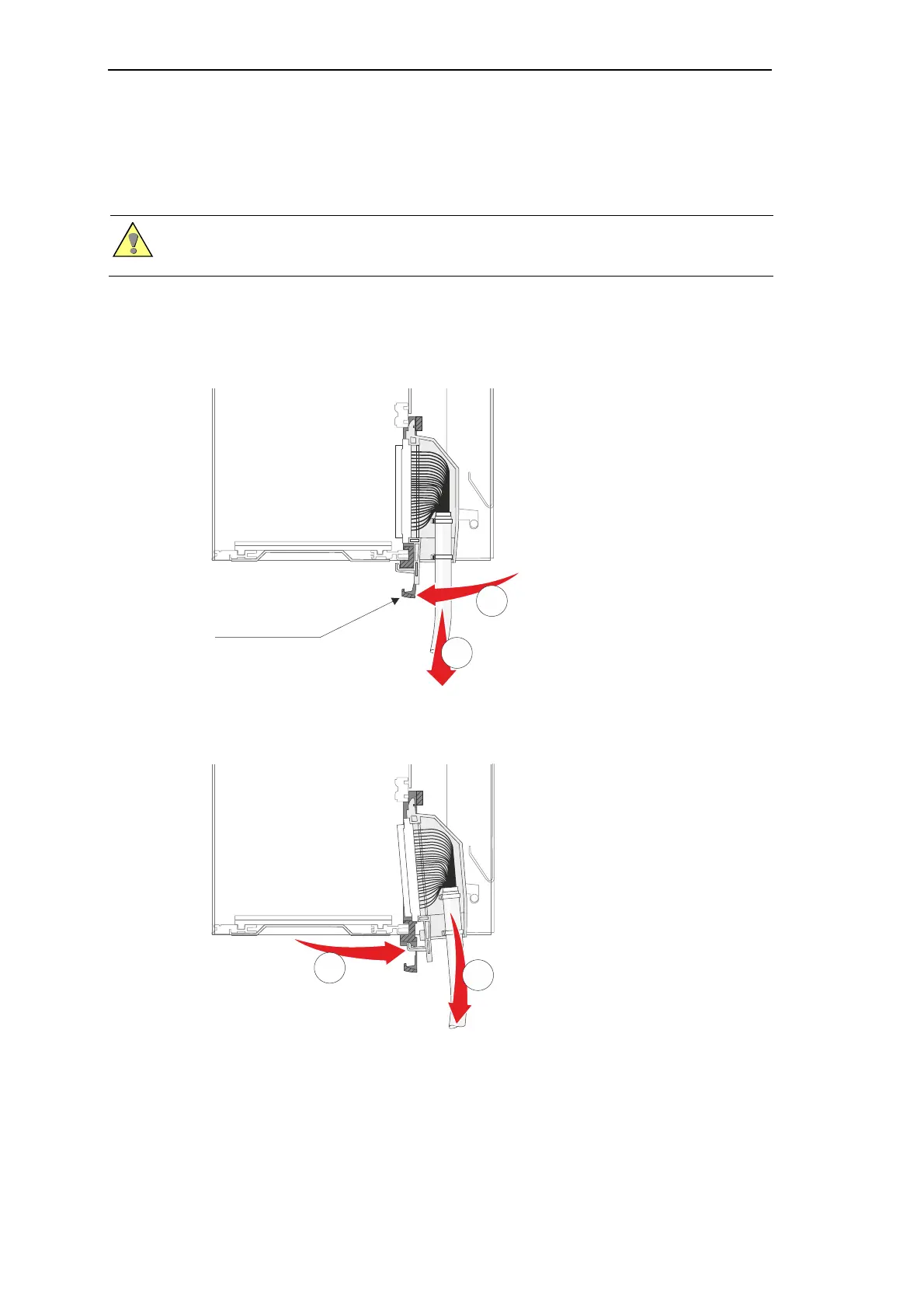

• Push the unlocking lever of the seating frame slightly forwards and hold it in this position
•
• Pull the peripheral cable vertically 4-5mm downwards ‚
• Swing the connector of the peripheral cable to the back ƒ (the hook of the grip flap is
thereby guided through the unlocking lever) and pull it downwards out of the board rack
„.
1
2
Unlocking lever
3
4
