Installation
SICAM RTUs, SICAM AK 3 User Manual 35
DC2-028-2.03, Edition 07.2016

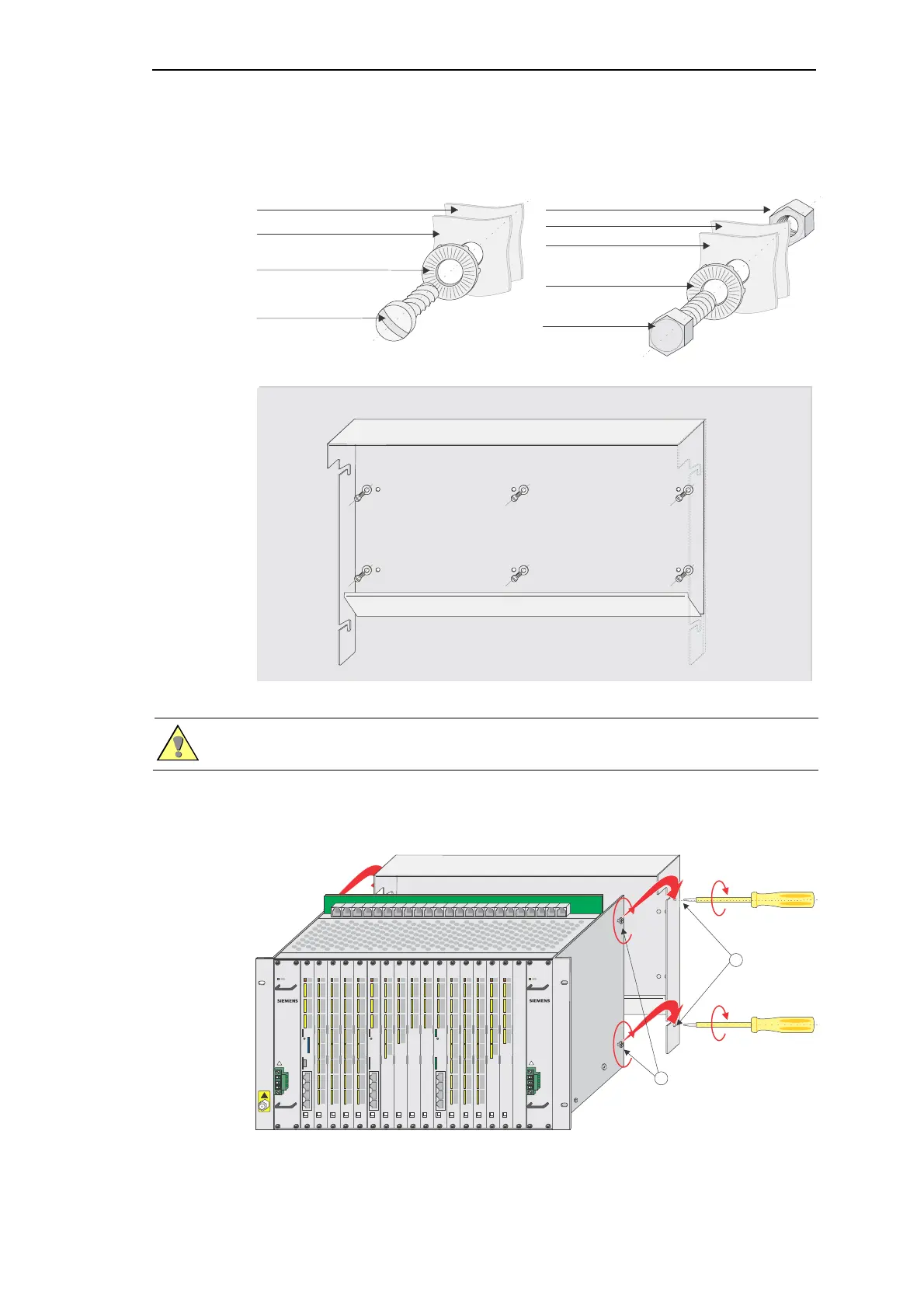

• Fasten the wall bracket
Caution
The board rack must be fastened with at least 6 screws.
• Screw the supplied screws (M6x12) half way into the board rack j, hang the board rack in
the wall bracket and tighten the fastening screws k.
Cabinet rear panel
Mounting with conventional screws
Mounting with self-tapping screws
Self-tapping screw
(DIN7500 5x12)
Contact washer
Rear cover
Cabinet rear panel
Screw M5x12 or 16
(DIN933 or DIN84)
Nut M5
Cabinet rear panel
Contact washer
Rear cover
SICAM AK
PS-263x
SICAM AK
PS-263x
CP-2016 DI-2110 DO-2210 AI- 2300 CP-2019
AI-2301
DI-2110 DI-2110 DO-2210 AI-230 0CP-2019
AI-2301AI-2301
DI-2110DI-2110 DI-2110
2
1
M6x12
