Installation
SICAM RTUs, SICAM AK 3 User Manual 49
DC2-028-2.03, Edition 07.2016

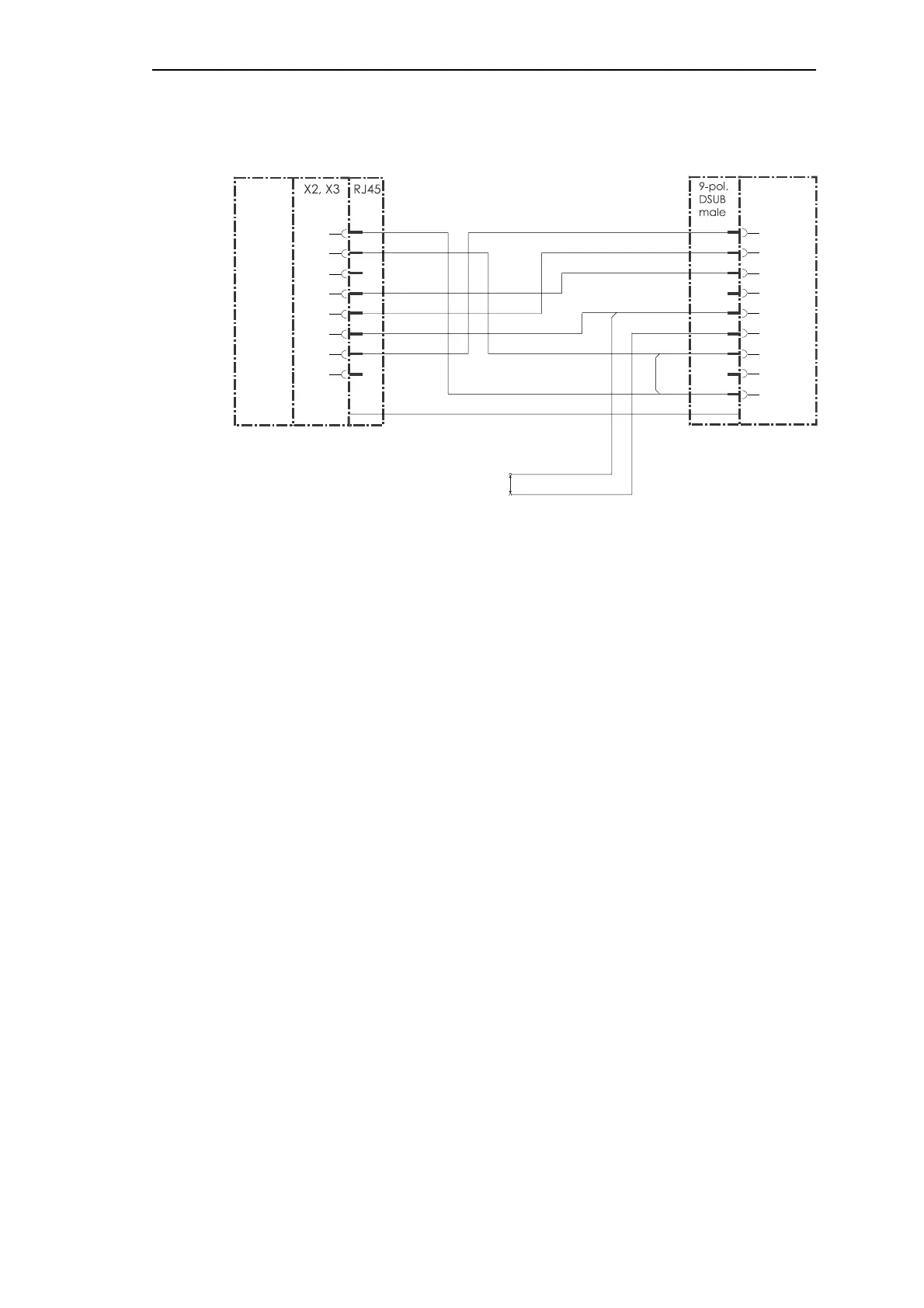

Cable Circuitry: Connection Board – Eurocom 24 Modem
1
CTS
2
3
4
5
6
7
8
RTS
DSR
TXD
RXD
GND
DCD
+5VDC
DTR
1
2
3
4
5
6
7
8
RTS
+5VDC
TXD
RXD
GND
DCD
DTR
Modem
Eurocom
9
CP-2016
CP-2019
Screen
Screen
