Product description
1.3 External design of the device
MD-34A
12 Operating Instructions, 08/2023, A5E52427535-AA

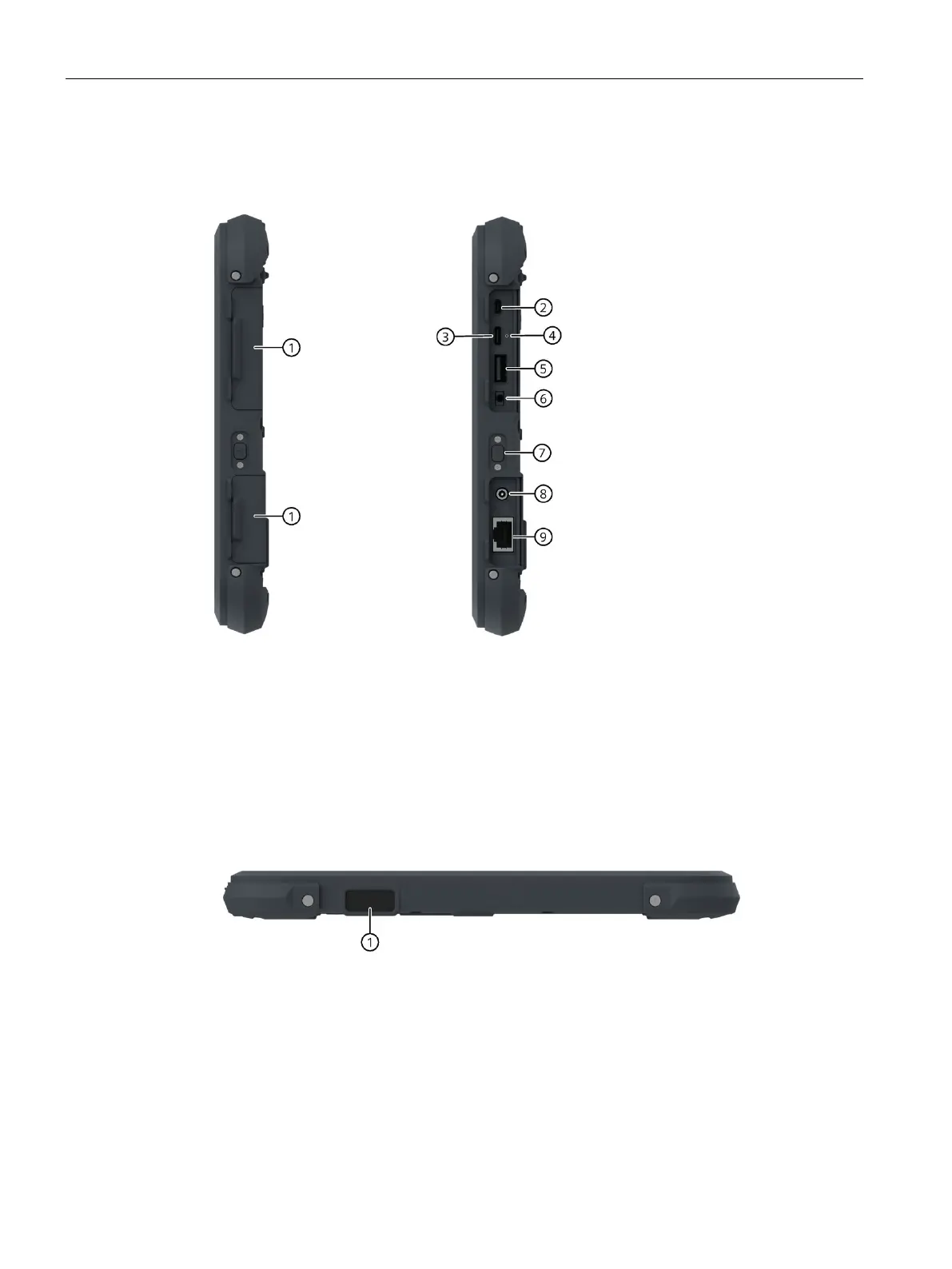

Right view
① Cover for interface ⑥ Audio jack socket, compatible with 3.5 mm
4-pole plug
②
Micro HDMI
⑦
Power button
③
USB 3.0 Type C
⑧
Power Jack from Power Adapter: DC-In 19 V
④
Reset button
⑨
RJ45 Ethernet
⑤
USB 3.0 Type A
Top view
①
Barcode reader
