Siemens SIMATIC IPC MD-34A User Manual

MD-34A
Operating Instructions, 08/2023, A5E52427535-AA
91
Hardware description
A
A.1 System resources
Currently allocated system resources
All system resources (hardware addresses, memory configuration, allocation of interrupts,
DMA channels) are assigned dynamically by the Windows OS, depending on the hardware
configuration, drivers and connected external devices.
You can in each case view information on the current configuration of system resources or
any existing conflicts with the installed operating system as follows:
• Windows icon in the status bar: Start > Enter "msinfo32" in the search box.
A.2 Interface
A.2.1 Terminal assignment of the docking connector

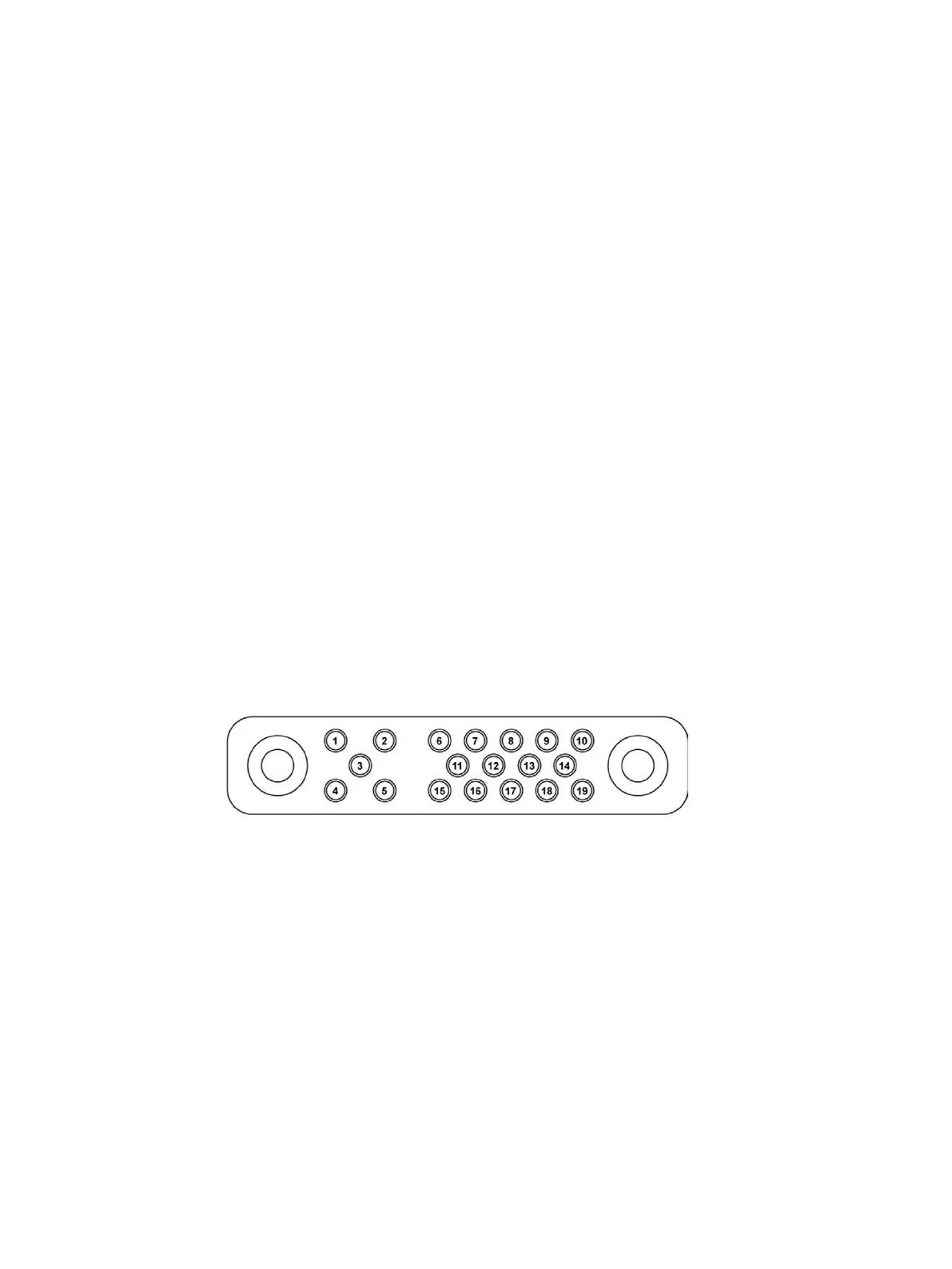

The bottom of the tablet has a 19-pin docking connector with the following terminal
assignments:
Pin
No.
Description Pin
No.
Description
1
RF_GND
11
NC
2
DOCK_DET#
12
NC
3
GPS ANT
13
GND
4
RF_GND
14
Voltage
5
RF_GND
15
USB+
6
NC
16
USB-
7
NC
17
GND
8
DETECT+
18
GND
9
Voltage
19
DETECT-
10
Voltage
