Layout of the WBM
After successful connection establishment to the optical reader, the start window of the WBM
appears:
①
Status bar and toolbar
②
Menu tree
③
Main window

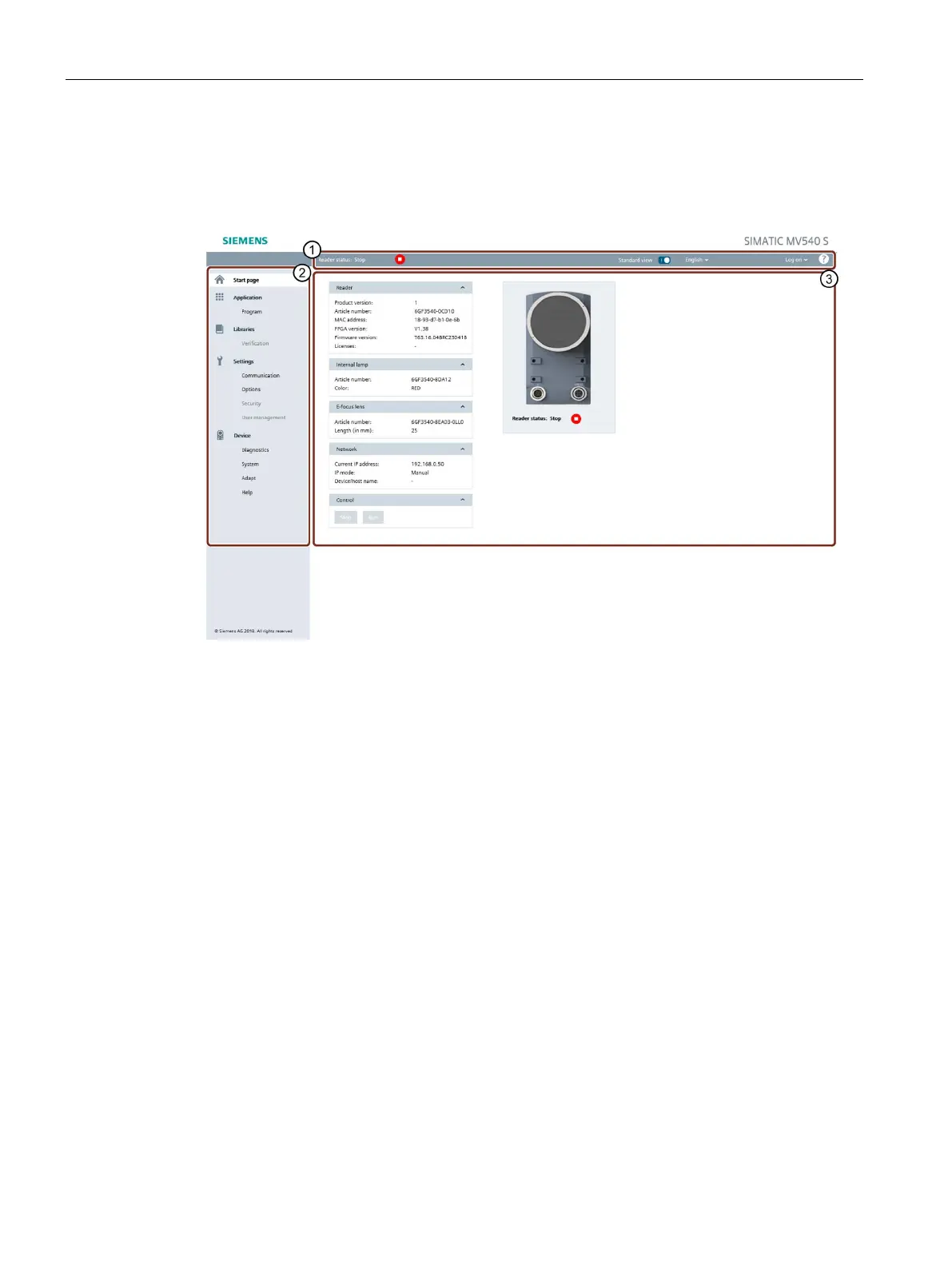

Figure 8-1 Start window of the WBM
Status bar and toolbar
Above the main window there is the status bar with the following information:
● Display of reader status and access status
● View selection
● Drop-down list for selecting the user interface language
● Display of the user profile
● Login drop-down list to select the user
● Help
A menu-specific toolbar may be displayed below the status bar and above the main window.
The toolbar is only displayed in the "Application" and "Libraries" menus and has different
functions depending on the menu.
The toolbar and its individual functions are described at the start of each section related to
the menu.
