5.4 Mounting attachments for built-in ring lights
SIMATIC MV500
70 Operating Instructions, 06/2018, C79000-G8976-C494-01
Mounting attachments for built-in ring lights
The built-in ring lights are delivered fully assembled with the corresponding attachments. The
attachments that are included depend on the following factors:
● Built-in ring light (Basic, Remote, Multi)
● LED color of the ring light
The following table gives you an overview of the various attachments and the included filters,
as well as the corresponding built-in ring lights.

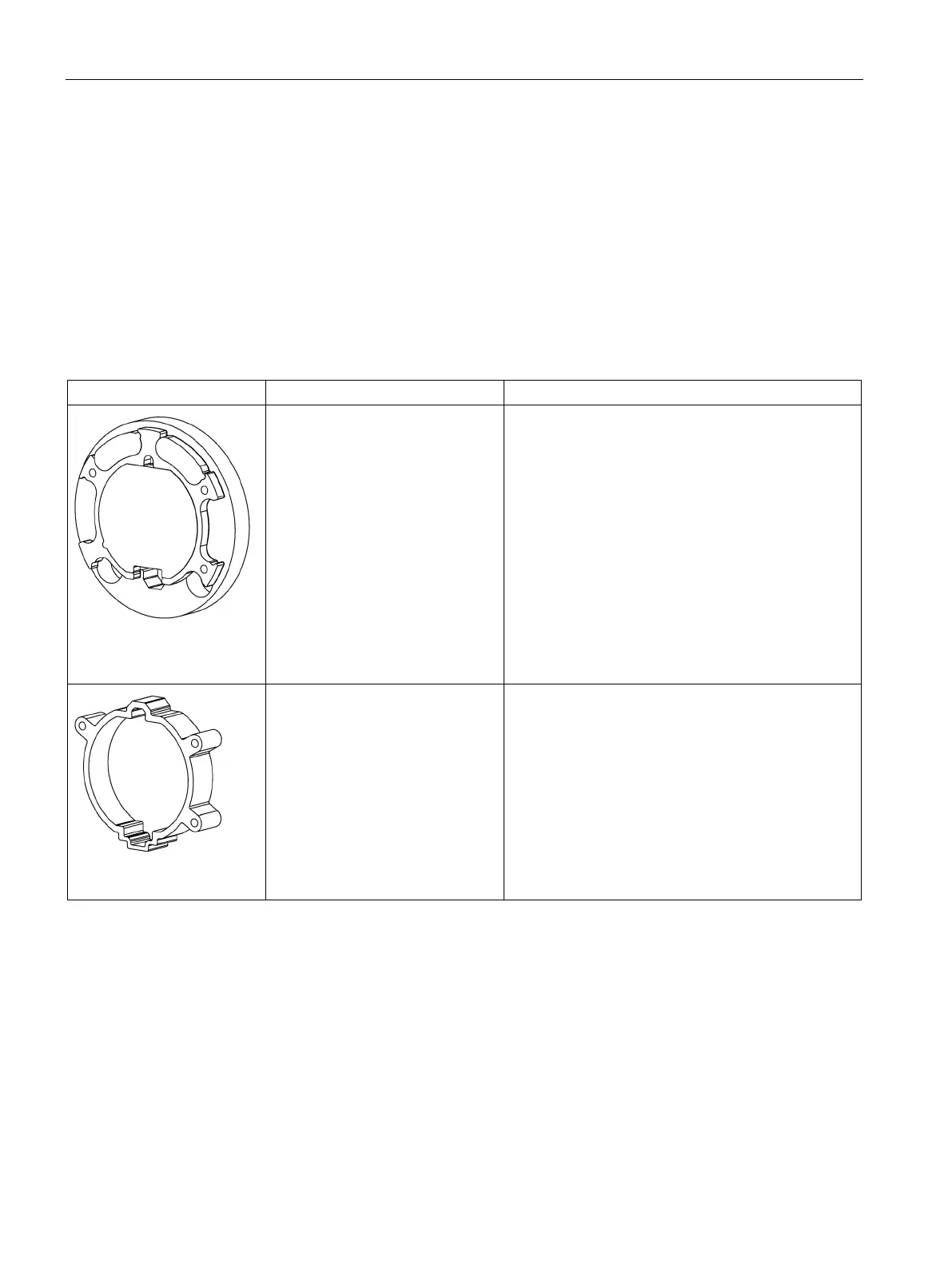

Table 5- 1 Ring light attachments
Suitable built-in ring lights
Attachment with polarization
filter
Built-in ring light red (Multi, red) This attachment is equipped with a polarization filter.
It was specially developed for flexible use in the near
field and far field with white and red LEDs.
Anti-glare attachment
Built-in ring light red (Multi, red) This attachment allows unimpeded light propagation
with large radiation angles.
The anti-glare attachment was developed for applica-
tions with lenses with focal length ≤ 16 mm that have
to illuminate a wide field. This attachment prevents
illumination reflections on the cover glass of the pro-
tective lens barrel.
In addition, all built-in ring lights are supplied with the anti-glare attachment.
