Dimension drawings
12.6 SIMATIC MV500 with external ring light
SIMATIC MV500
204 Operating Instructions, 06/2018, C79000-G8976-C494-01
12.6
SIMATIC MV500 with external ring light

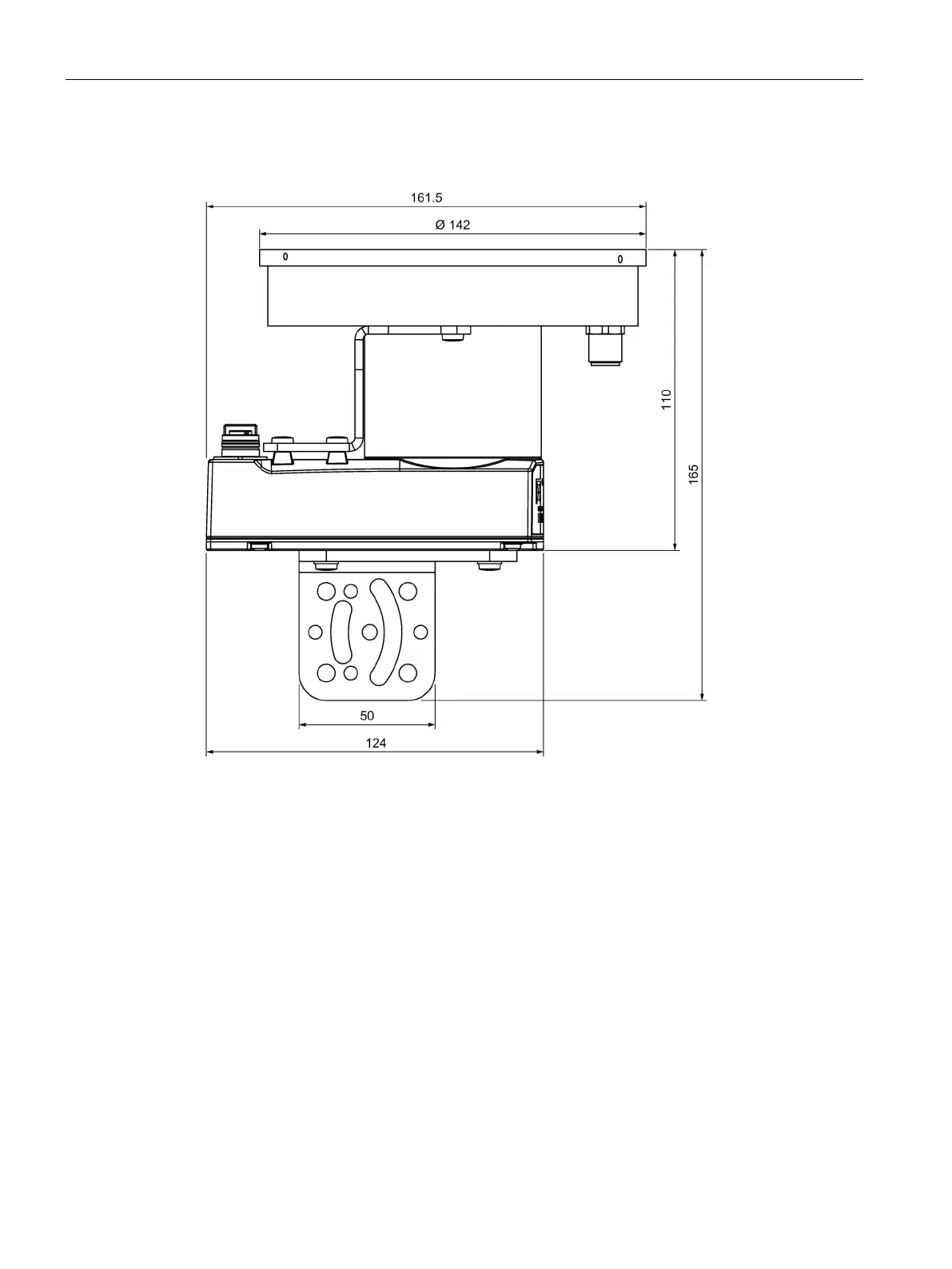

Figure 12-6 SIMATIC MV500 optical reader with external ring light and mounting plate
