Siemens SIMATIC MV540 H - Design of the SIMATIC MV540

Description
1.3 Design of the SIMATIC MV540
SIMATIC MV500
Operating Instructions, 06/2018, C79000-G8976-C494-01
17
1.3
Design of the SIMATIC MV540

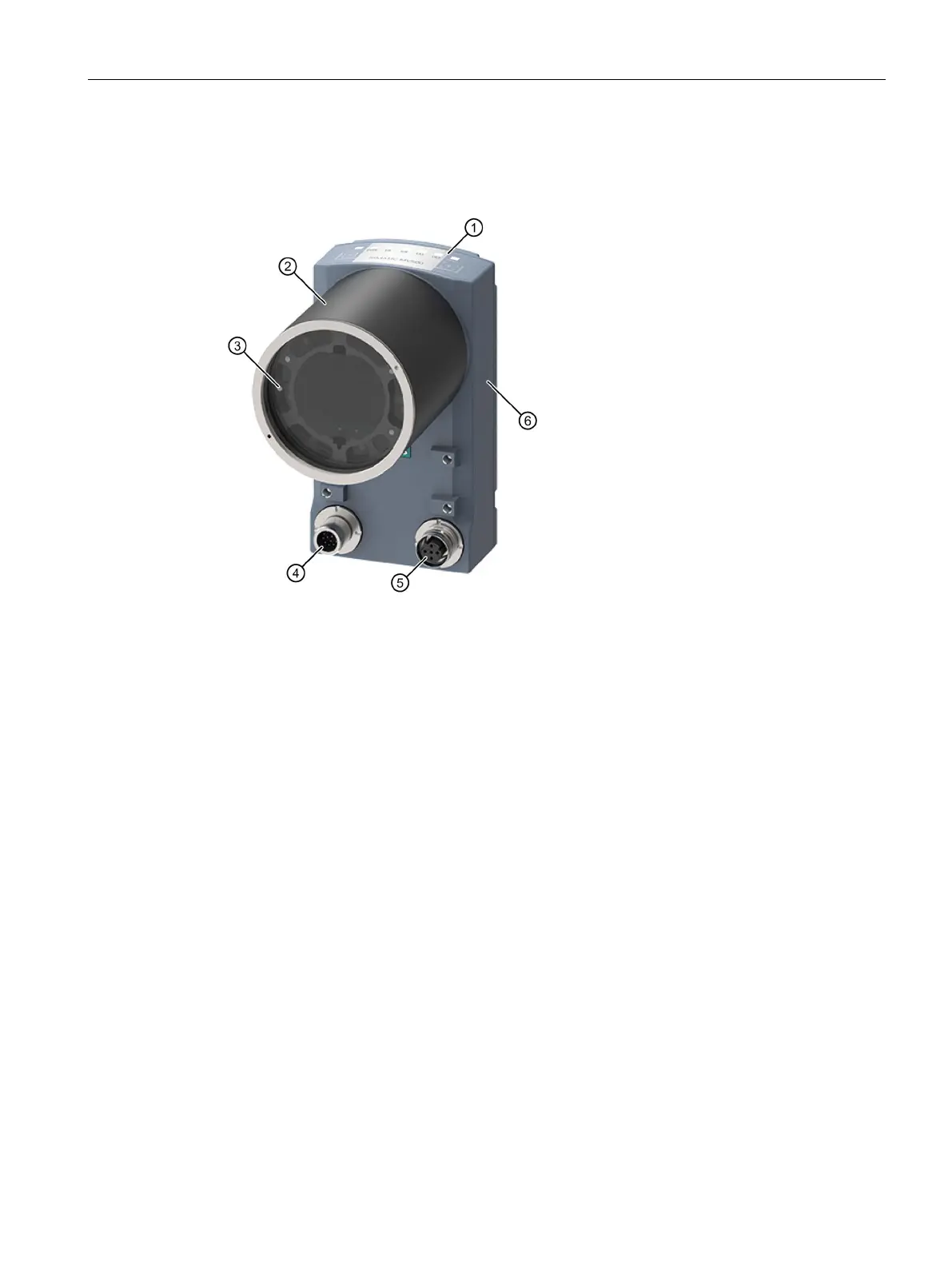

The following figure shows the design of the SIMATIC MV540 optical reader.
①
LED display
④
Combination interface for
power supply, DI/DQ, RS232 and CM
(M12, 12-pin)
②
Protective lens barrel
⑤
Ethernet interface
Power over Ethernet (M12, 4-pin)
③
Built-in ring light
⑥
Nameplate
Figure 1-1 Design of the SIMATIC MV540
