Dimension drawings
12.3 D65 protective tube for SIMATIC MV500
SIMATIC MV500
202 Operating Instructions, 06/2018, C79000-G8976-C494-01
12.3
D65 protective tube for SIMATIC MV500

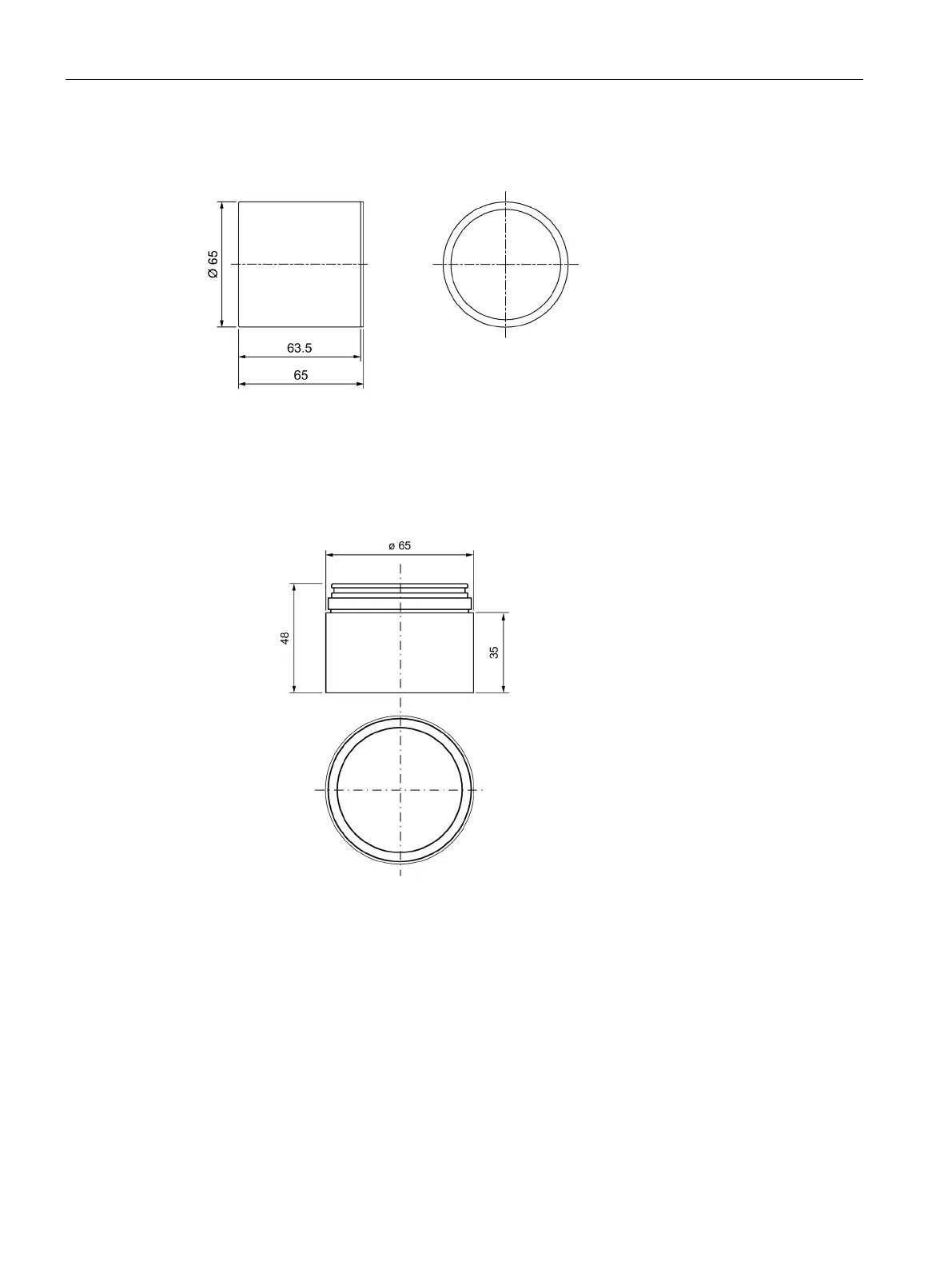

Figure 12-3 D65 protective tube for SIMATIC MV500; metal/glass
12.4
D65 protective tube extension
Figure 12-4 D65 protective tube extension
