Siemens SIMATIC MV540 H - Integrated HTML Pages; A.3.2 Integrated HTML

Appendix
A.3 Alternative user interfaces
SIMATIC MV500
Operating Instructions, 06/2018, C79000-G8976-C494-01
225
A.3.2
Integrated HTML pages
The HTML pages integrated on the optical reader provide the opportunity of obtaining
important information from the optical reader and monitoring the recognition process in many
environments.
Benefits
● Independent of the operating system or the browser you are using.
● Does not require Java Runtime on the visualization device.
● Requires little memory and performance on the visualization device.
● Can be integrated easily in existing applications.
● Display normally available in three languages, language can be changed online.
Available HTML pages
Home page

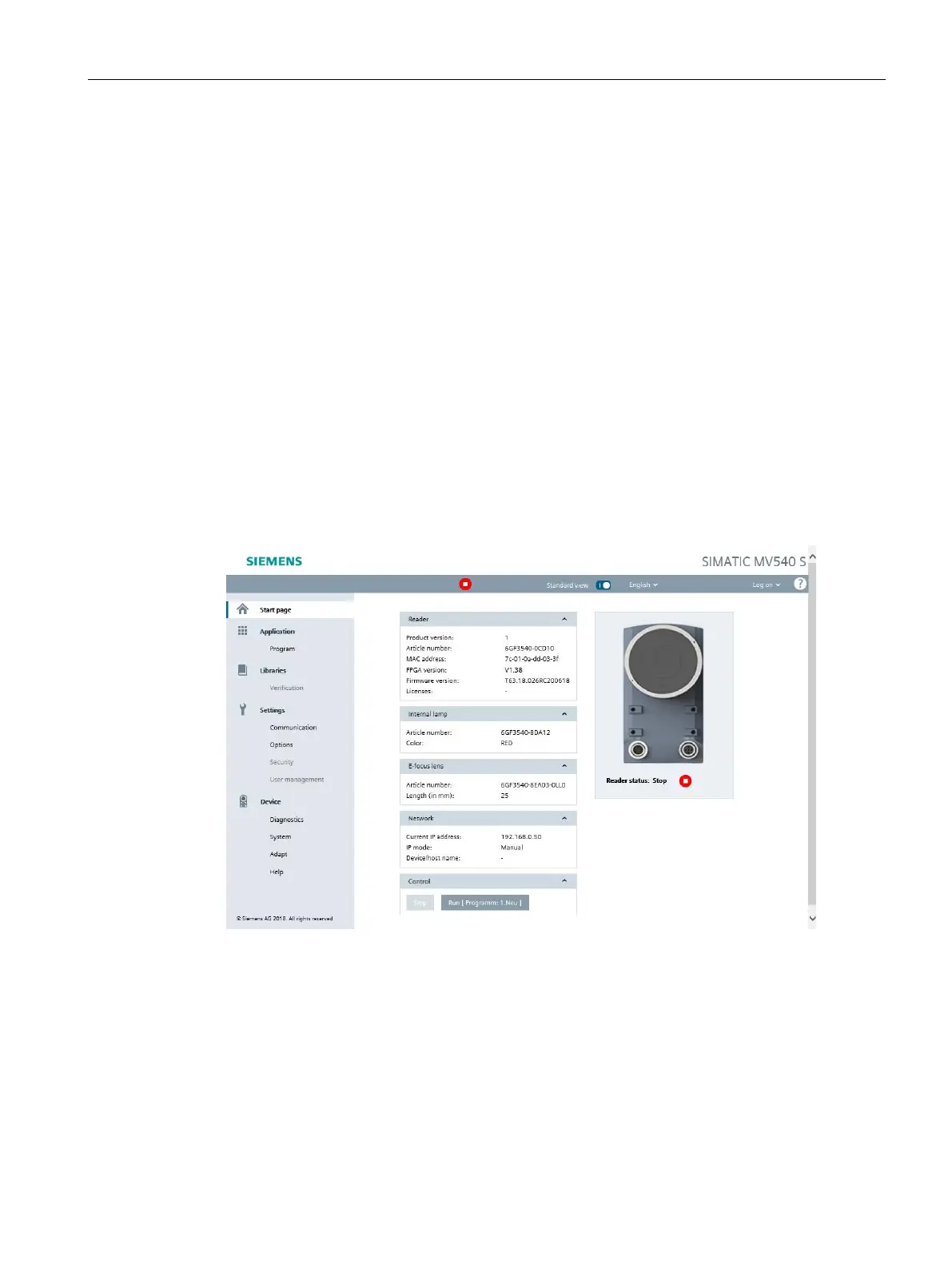

Figure A-2 Start page
Shows current device information on:
● Device reader revision level
● Firmware version
● PROFINET IO device name
● Network identification
