1.5 System configuration
SIMATIC MV500
Operating Instructions, 06/2018, C79000-G8976-C494-01
19
1.5
System configuration

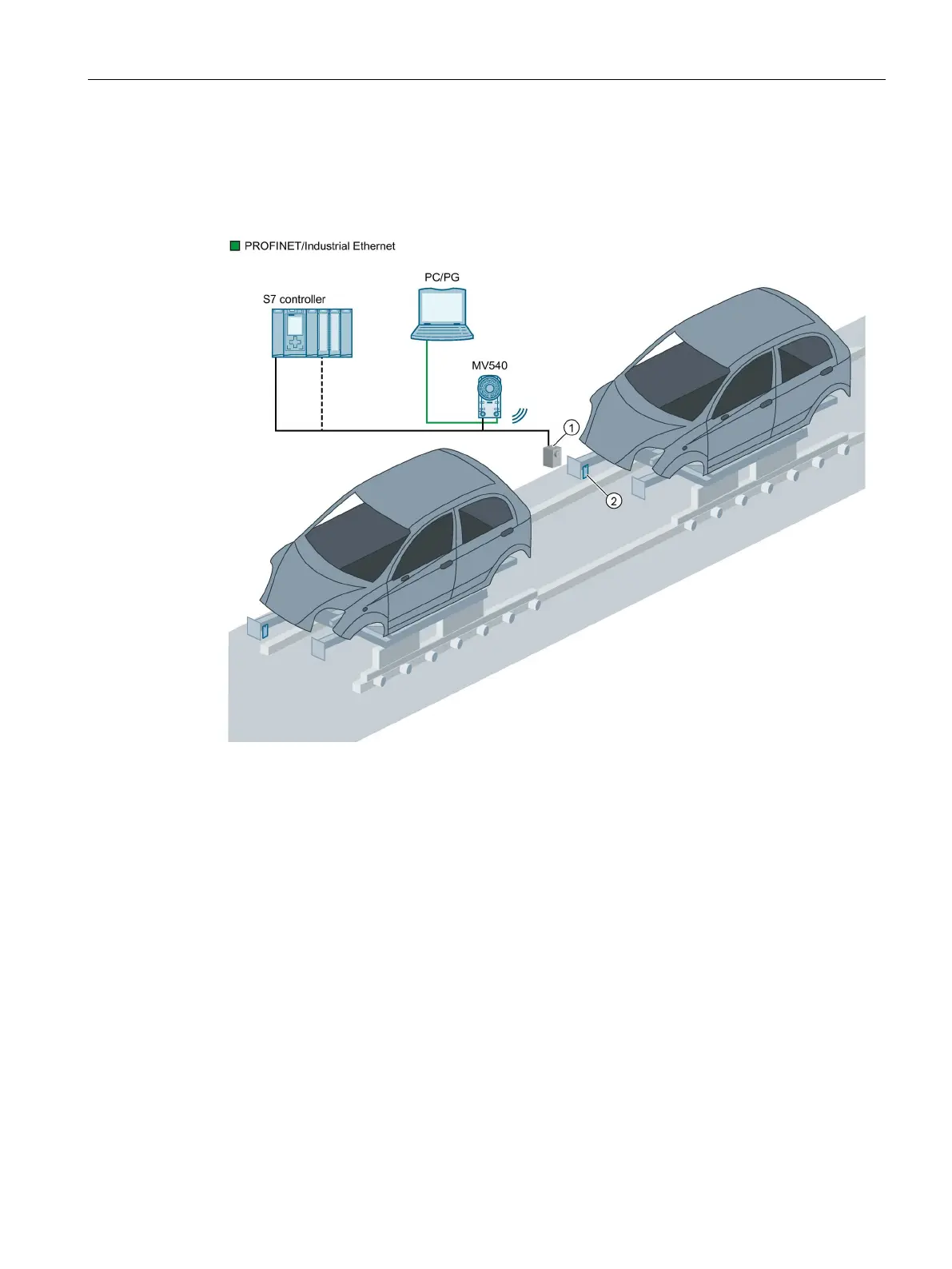

The following figure shows a typical system configuration with a SIMATIC MV540 optical
reader.
①
Optical sensor or light barrier (for trigger signal)
②
Object with code
Figure 1-3 Example of a system configuration on a production line (illustrated with SIMATIC MV540)
