SIMATIC MV500
Operating Instructions, 06/2018, C79000-G8976-C494-01
201

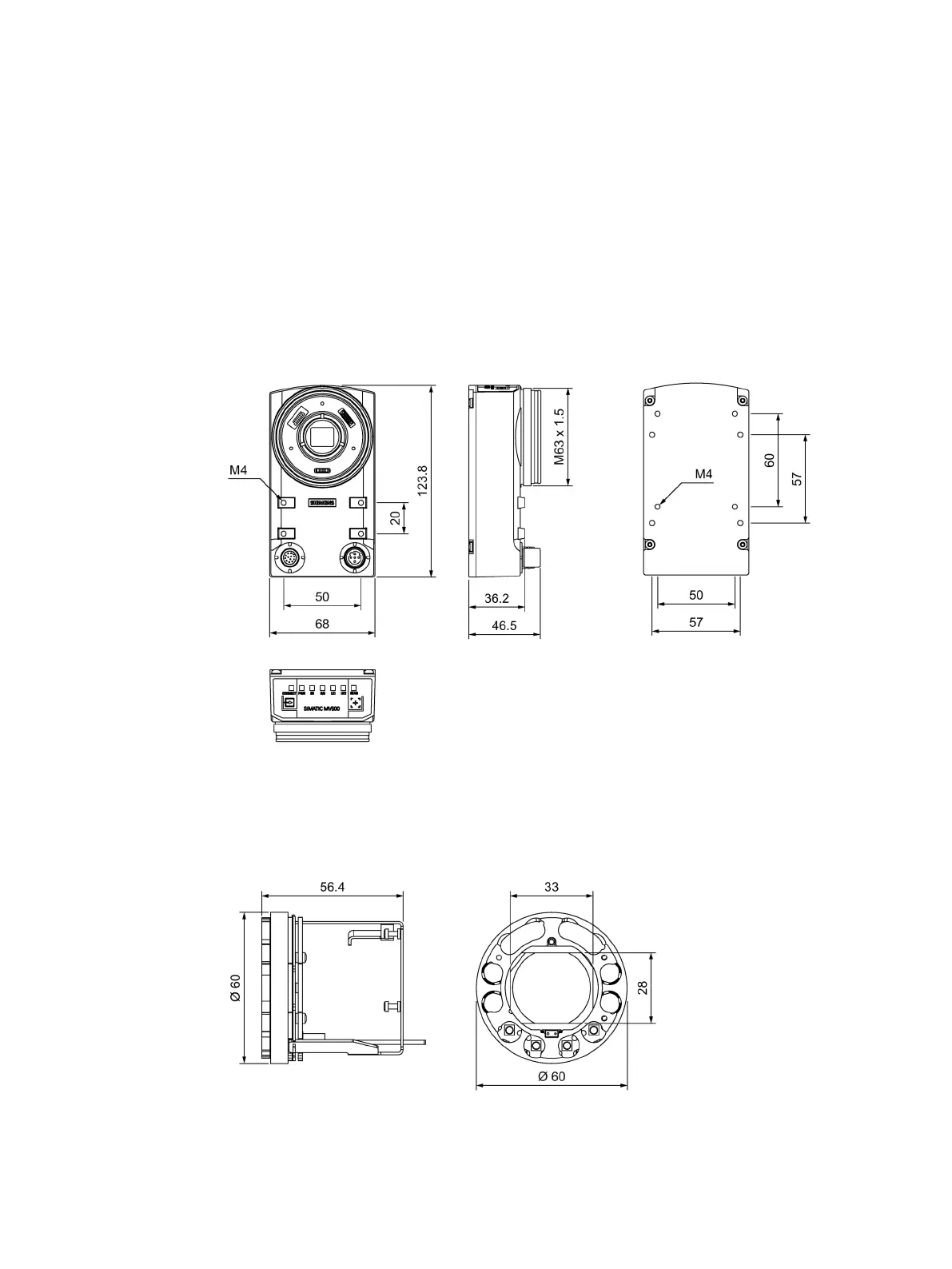

Dimension drawings
12
All dimensions in mm.
12.1
SIMATIC MV540
Figure 12-1 SIMATIC MV540 optical reader
12.2
Built-in ring lights for SIMATIC MV500
Figure 12-2 Built-in ring light for SIMATIC MV500 far field
