Network and system integration
4.8 System configuration with WinCC flexible/HTML browser and switch
SIMATIC MV500
60 Operating Instructions, 06/2018, C79000-G8976-C494-01
4.8
System configuration with WinCC flexible/HTML browser and switch
①
Optical sensor or light barrier
②
Object with code

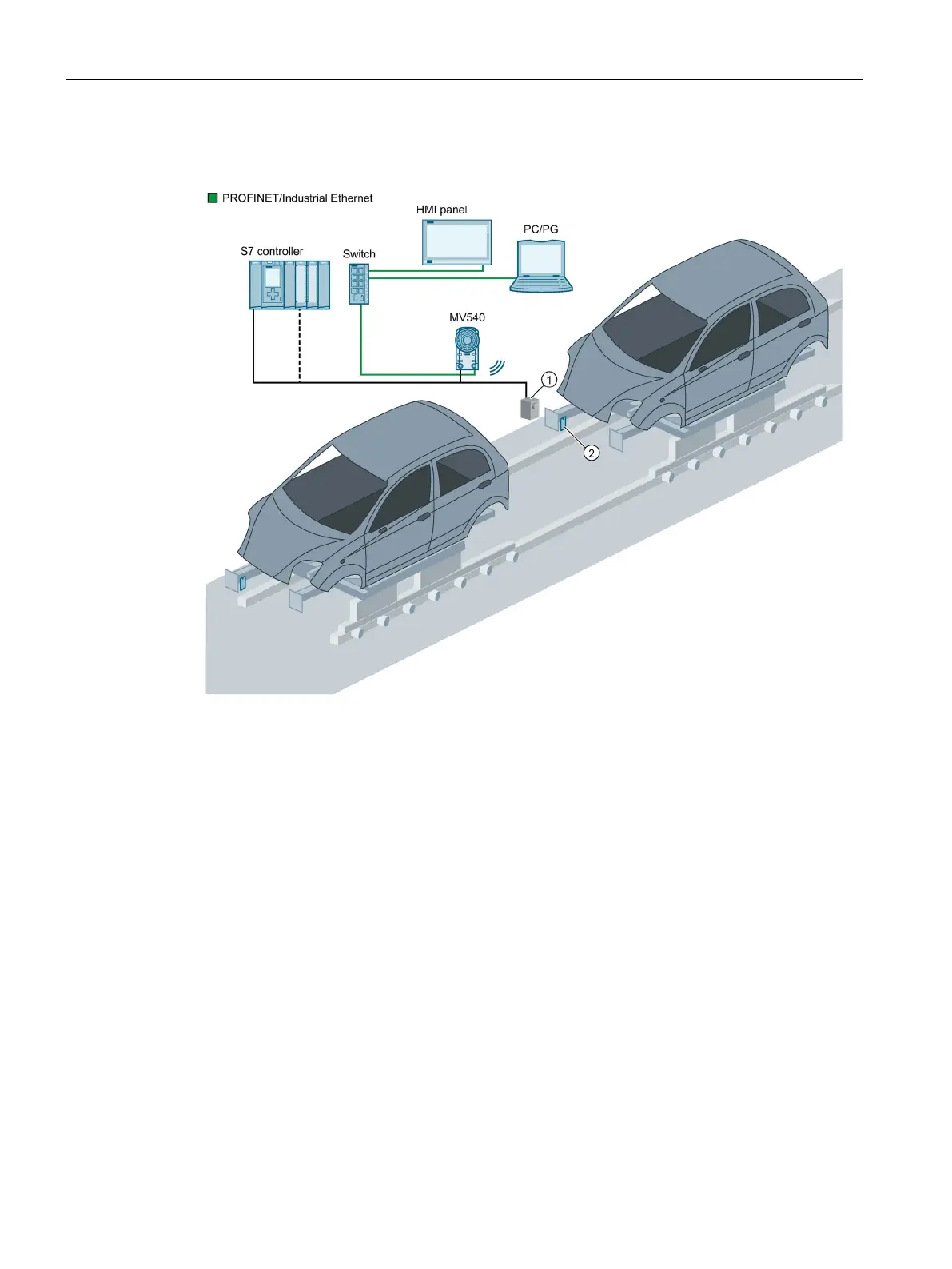

Figure 4-7 Example: System configuration with WinCC flexible or HTML browser
System properties - WinCC flexible
● Visualization takes place via the Web pages of the optical reader, for WinCC flexible on a
PC/PG with WinCC flexible or an HMI panel.
● The results of the optical reader are obtained and displayed by WinCC flexible via a
connection to the S7 controller.
● A PC/programming device is connected via Ethernet to allow adjustment of the device.
System properties - HTML browser
● Visualization takes place via an HTML browser (e.g. Microsoft Internet Explorer) on a
PC/PG, Panel PC or similar device.
● The optical reader can be monitored via the live image of the diagnostic pages, without
the need for a Java VM on the PC/PG.
● A PC/programming device is connected via Ethernet to allow adjustment of the device.
