Network and system integration
4.4 System configuration via the Ethernet interface with switch
SIMATIC MV500
56 Operating Instructions, 06/2018, C79000-G8976-C494-01
● The optical reader is triggered either via digital I/O, PROFINET or via the built-in auto-
trigger function.
● A PC/programming device is connected via Ethernet and a switch to allow adjustment of
the device.
4.4
System configuration via the Ethernet interface with switch
Note
Power supply using "Power over Ethernet" (PoE)
If the optical reader is supplied by PoE, for example when connected to a
SCALANCE
X108POE, the Power IO RS232 cable is not needed.
①
Optical sensor or light barrier (for trigger signal)
②
Object with code

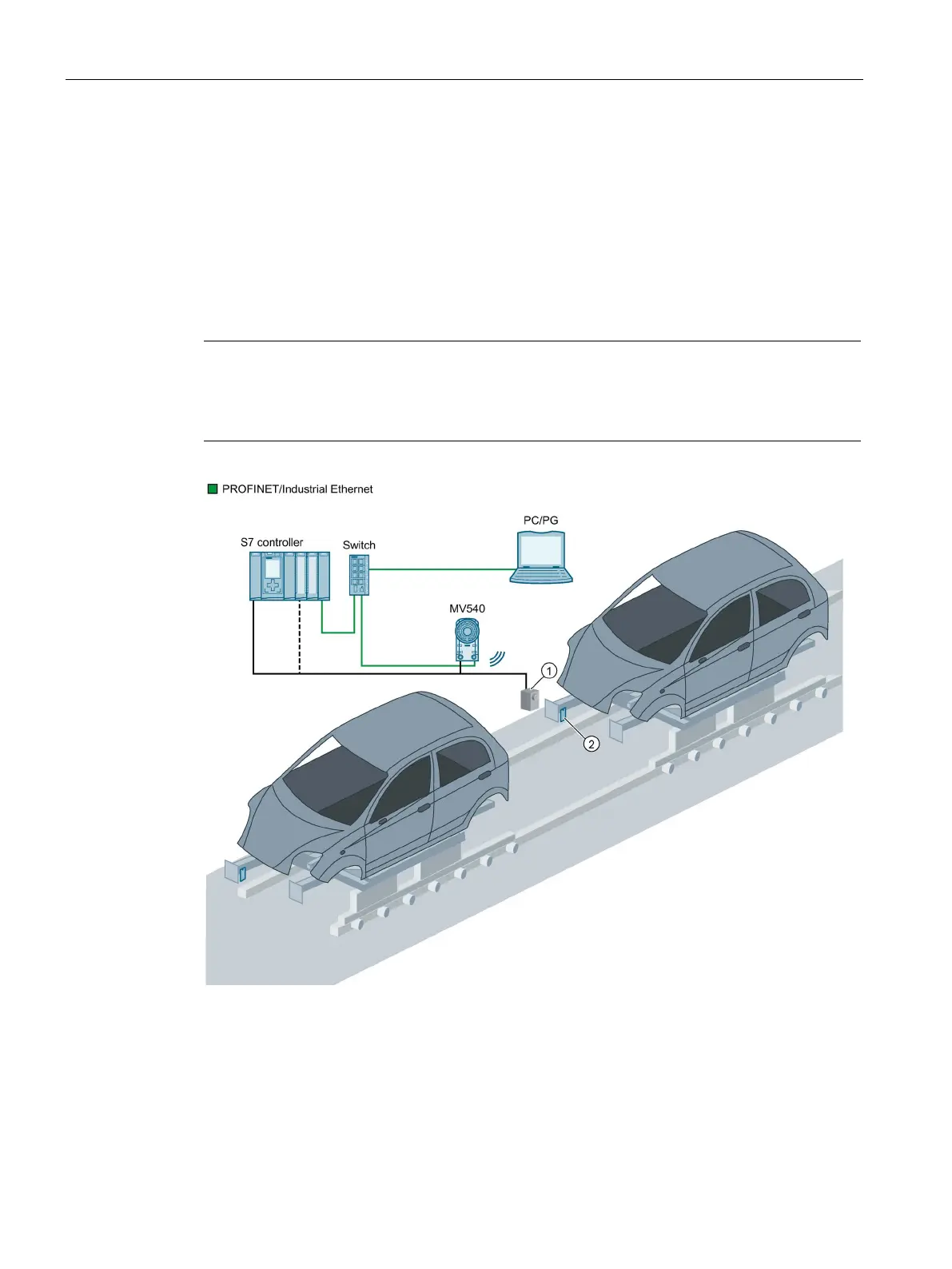

Figure 4-3 Example: System configuration via the Ethernet interface
