A.3 Alternative user interfaces
SIMATIC MV500
226 Operating Instructions, 06/2018, C79000-G8976-C494-01
Live image display with links

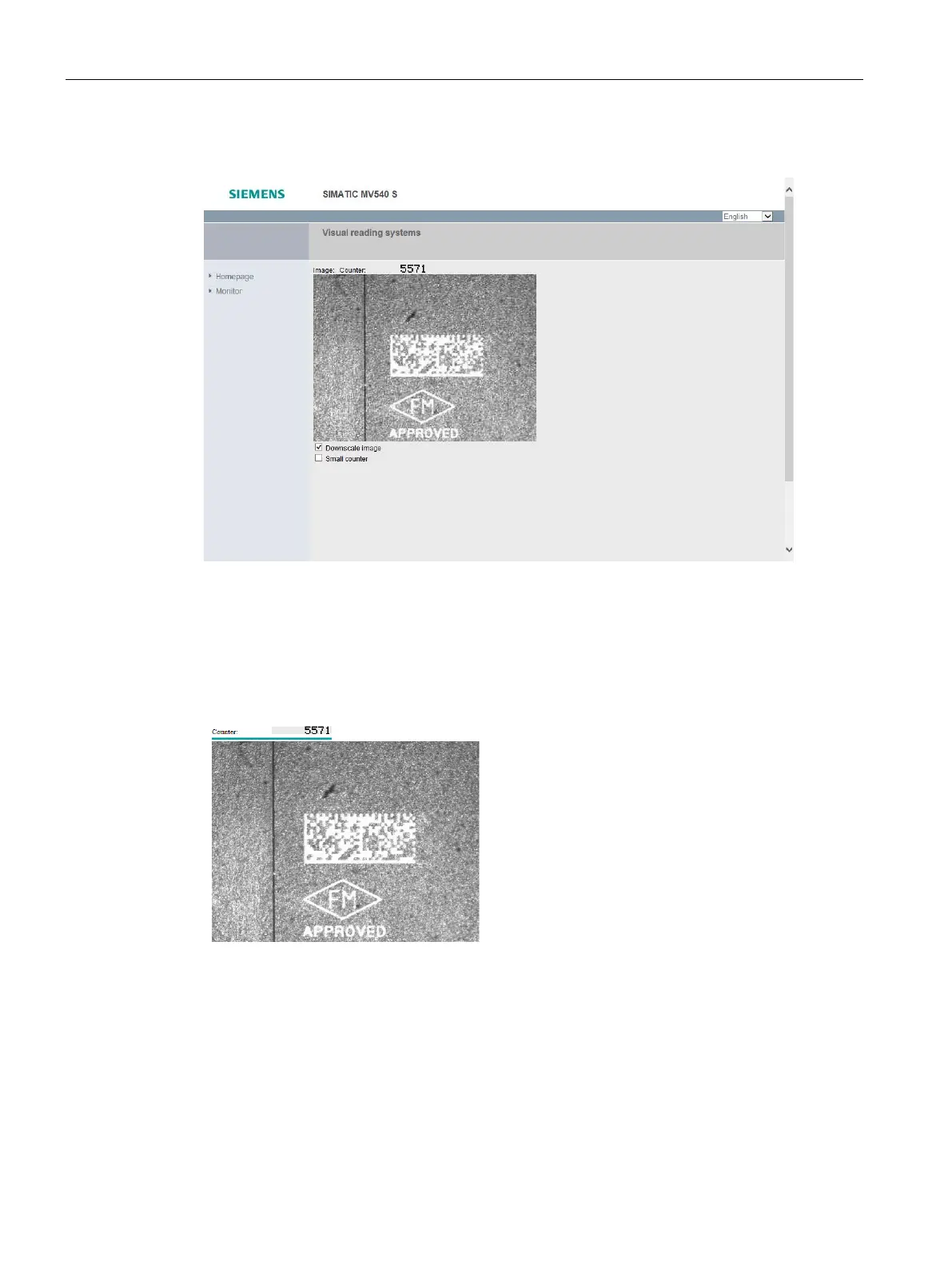

Figure A-3 Live image display with links
Displays the images acquired by the optical reader in adjustment mode or processing mode.
If the visualization device provides Java script support, the displayed image is automatically
updated. With the displayed links, you can call up other pages.
Live image display without links
Figure A-4 Live image display without links
