A.3 Alternative user interfaces
SIMATIC MV500
Operating Instructions, 06/2018, C79000-G8976-C494-01
227
Displays the images acquired by the optical reader in adjustment mode or processing mode.
If the visualization device provides Java script support, the displayed image is automatically
updated. This page does not provide any links to other pages.

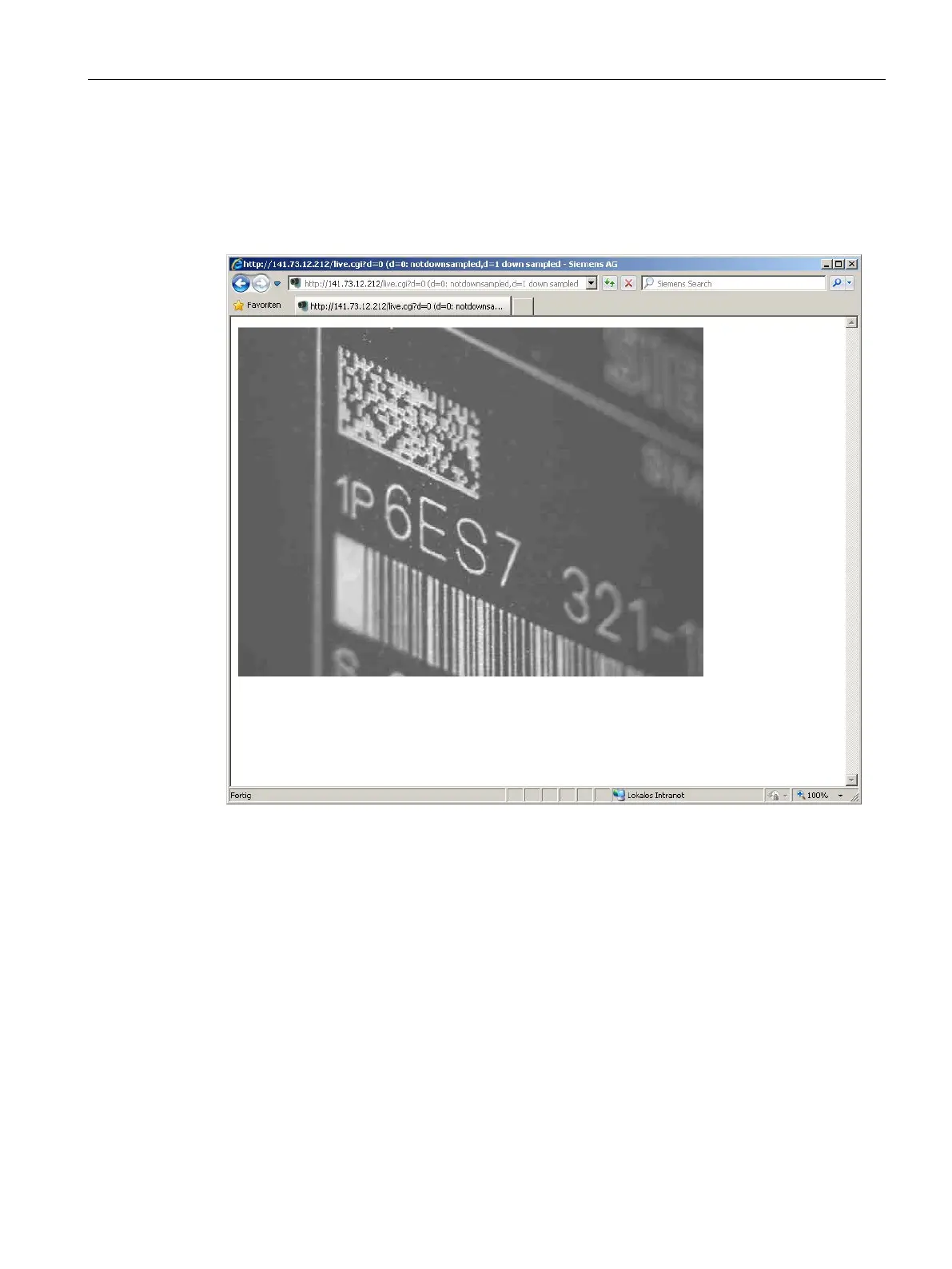

Figure A-5 Last image
Purely display of the last recorded image without any further information and without
automatic image updating.
