Appendix
A.3 Alternative user interfaces
SIMATIC MV500
228 Operating Instructions, 06/2018, C79000-G8976-C494-01

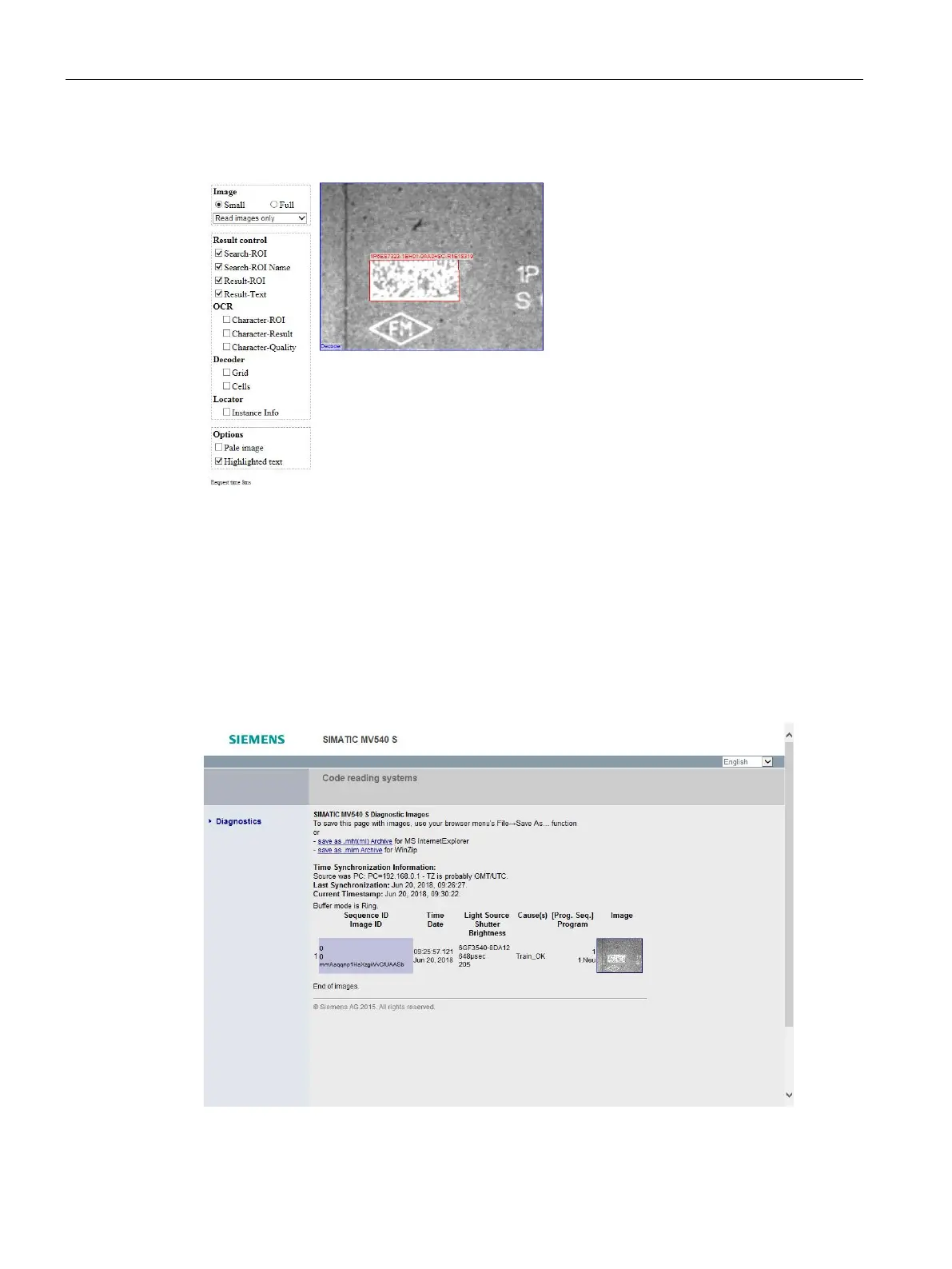

Figure A-6 Monitor
Non-embedded display of the last image processed in processing mode with colored overlay
showing the results of processing (ROIs and details view).
Requires JavaScript support and Internet Explorer as of Version 8.
Figure A-7 Diagnostic images
