Process interfacing via an automation system (PLC, PC)
9.9 Example programs
SIMATIC MV500
Operating Instructions, 06/2018, C79000-G8976-C494-01
171
Requirements
● .NET Framework v4.0 must be installed to run the demo program.
● The PC must be connected with the optical reader over the Ethernet interface.
Settings in WBM
Make the following settings in the WBM:
● "Settings > Communication > Interfaces > Archiving/MMI" menu:
Enter the IP address and the port of the PC on which you want to archive the diagnostic
information.
● "Settings > Communication > Use > Diagnostics transfer" menu:
Select from the drop-down lists which data you want to archive: Diagnostics data sets,
diagnostics images or both.
Operation of the example program

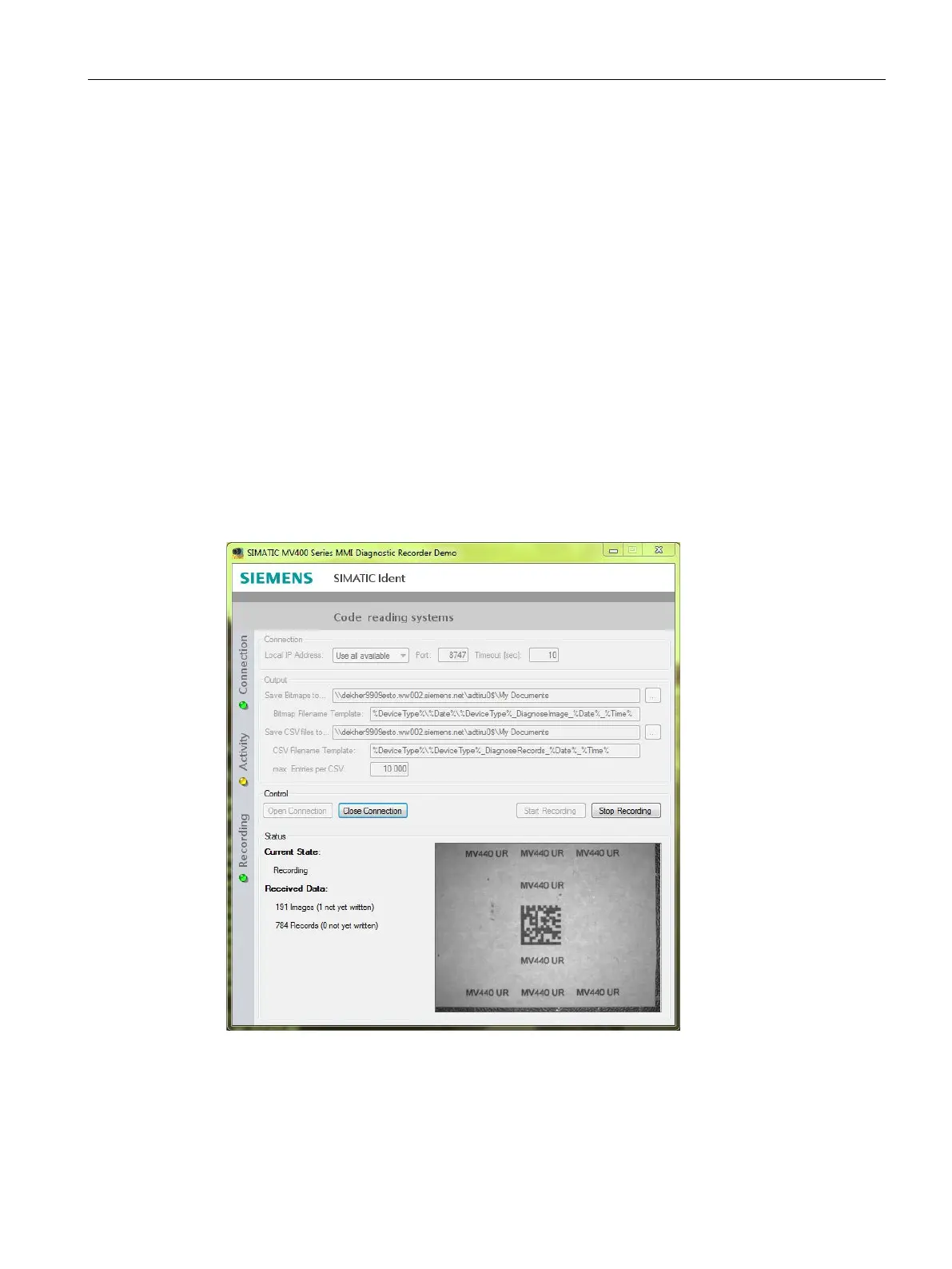

Start the example program by double-clicking "MMIDiagnosticsGUI.exe".
