Mounting
5.2 Mounting with built-in ring light and mini-lens
SIMATIC MV500
66 Operating Instructions, 06/2018, C79000-G8976-C494-01
7. Mount the reader on a suitable mounting fixture or holder (4x M4, 1-2 Nm).
Use the mounting plate for SIMATIC MV500 or a mounting device with matching holes.
Note that the reader has two different drilling templates (50 x 60/57 x 57).

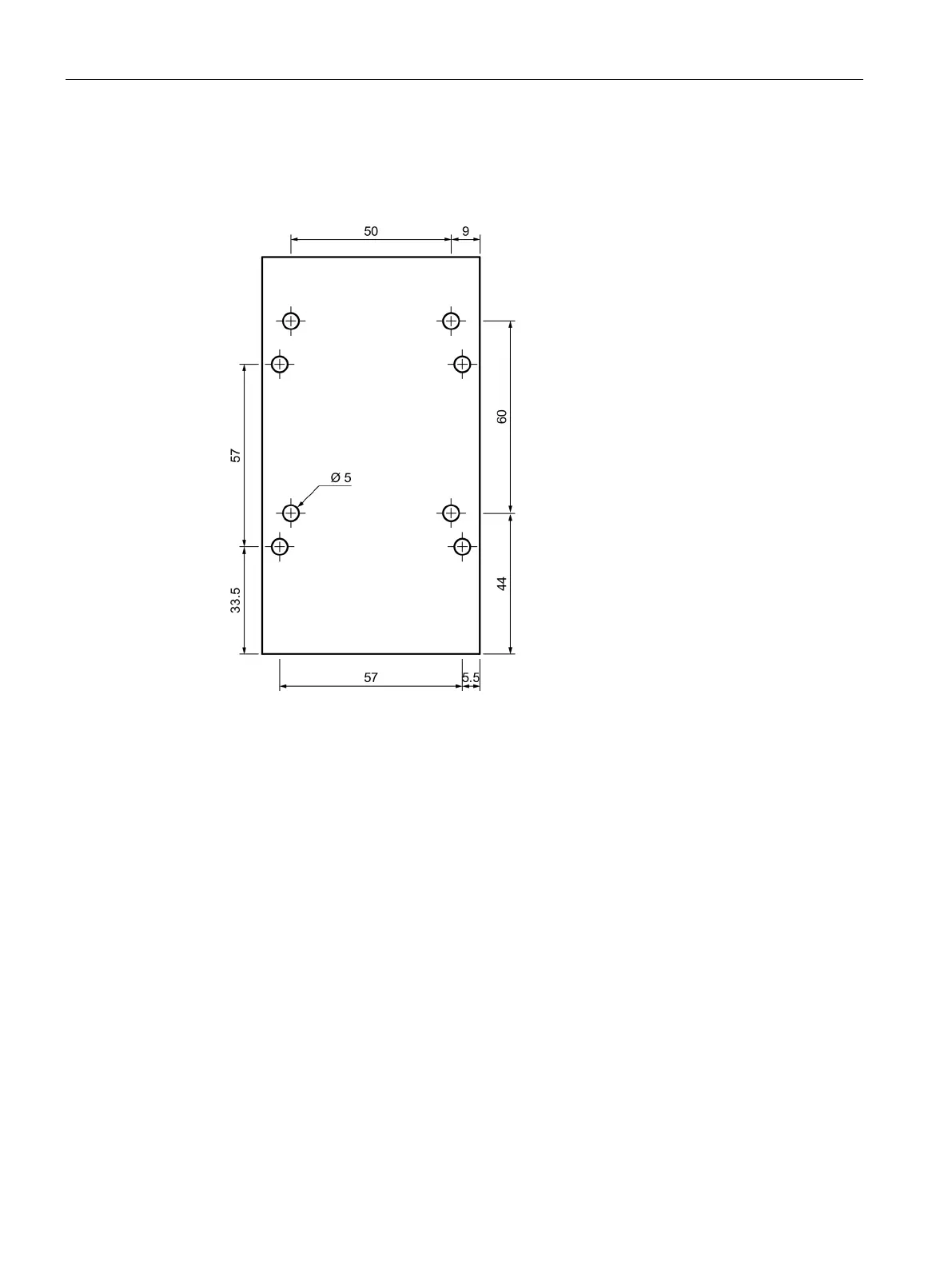

Figure 5-2 Drilling templates for mounting the SIMATIC MV500 optical reader
8. Select a suitable location to install the device.
