6.5 Operating optical reader with external ring light
SIMATIC MV500
Operating Instructions, 06/2018, C79000-G8976-C494-01
85

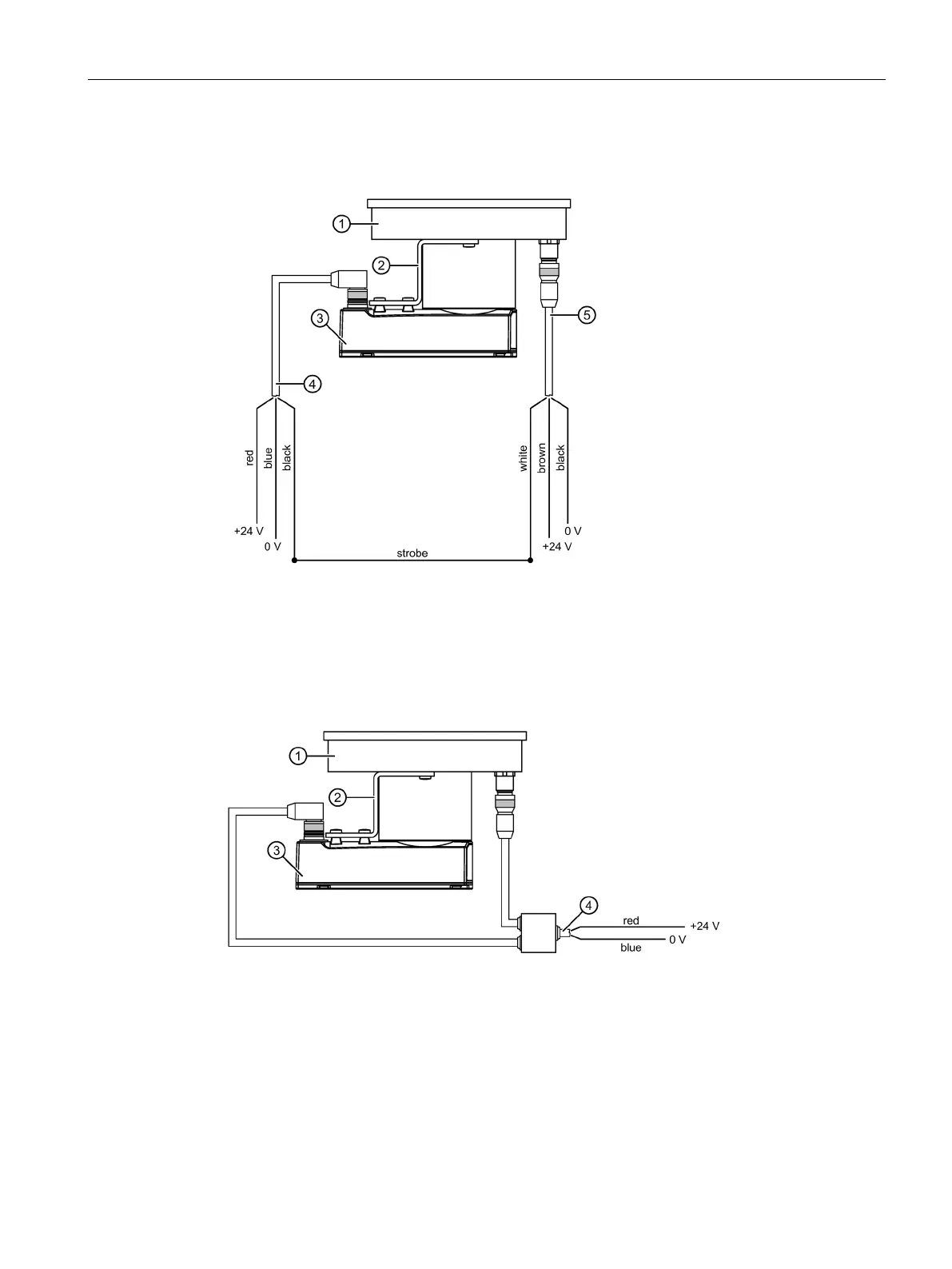

If you use an optical reader with an external lighting unit in your application, wire up your
application according to the following wiring diagrams.
External ring light holder
SIMATIC MV500 optical reader
Connecting cable external ring light
Figure 6-10 Connection and wiring for external ring light
External ring light holder
SIMATIC MV500 optical reader
Figure 6-11 Connection and wiring for external ring light, with Y adapter
