Commissioning
7.3 Connecting and setting up the reader using the PST
SIMATIC MV500
Operating Instructions, 06/2018, C79000-G8976-C494-01
91
6. Enter values for the IP address and subnet mask as shown below.

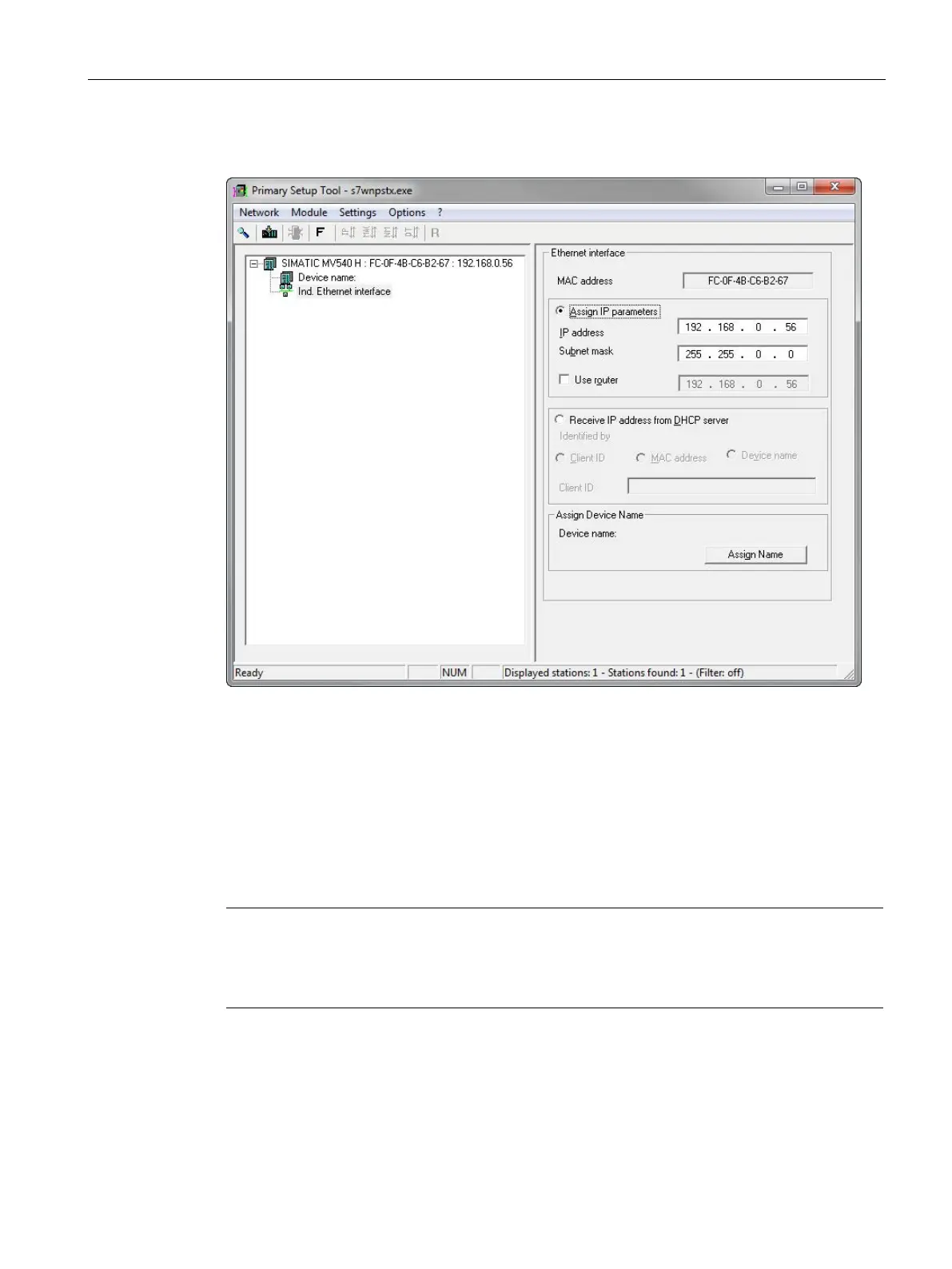

Figure 7-1 Assigning IP address with the PST
7. Select the displayed reader and then load the configuration into the reader ("Module >
Load" menu).
8. Confirm this dialog box with "Yes".
The reader has been assigned the IP address and can be reached at this address from your
PC.
Note
Restart may be required
Depending on the mode being used, you may need to restart the reader by turning the power
off and on
again.
