Siemens SIMATIC NET SCALANCE SC-600 - Ring Redundancy

Configuring with Web Based Management
4.3 "Information" menu
SCALANCE SC-600 Web Based Management (WBM)
102 Configuration Manual, 10/2021, C79000-G8976-C475-03
• Invalid Messages
Number of invalid messages that were transferred by the synchronization partner.
• Reset Counters
Click this button to reset the counters on this page.
Refresh
Refreshes the display of the values. The result is shown in the table.
4.3.11.4 Ring redundancy

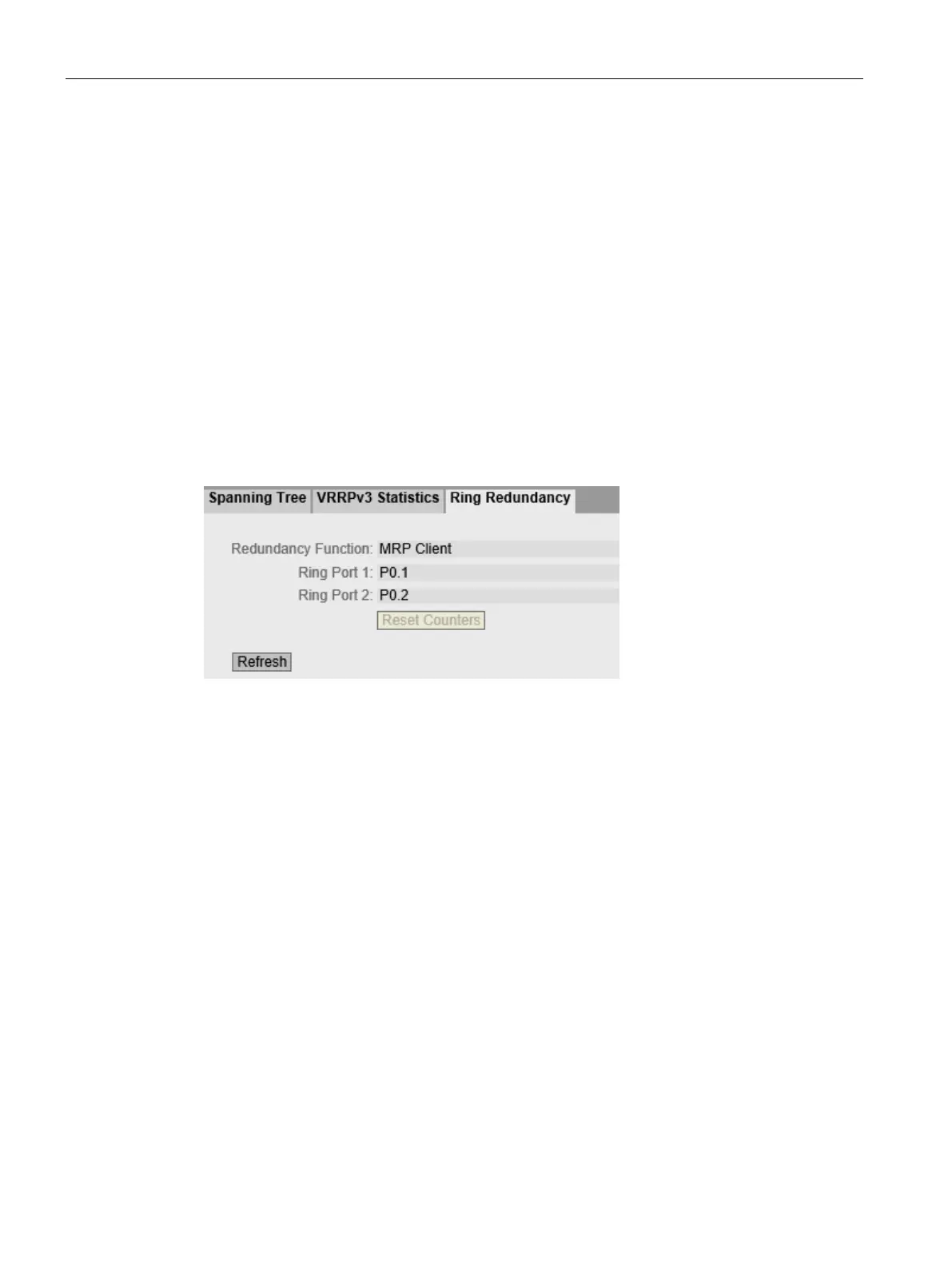

Information on ring redundancy
On this page, you obtain information about the status of the device in terms of ring
redundancy. The text boxes on this page are read-only.
Description of the displayed values
The table has the following columns:
• Redundancy Function
The "Redundancy Function" column shows the role of the device within the ring:
– No Ring Redundancy
The device is operating without redundancy function.
– HRP Client
The device is operating as HRP Client.
– MRP Client
The device is operating as MRP Client.
• Ring Port 1/Ring Port 2
The "Ring Port 1"and "Ring Port 2" columns show the ports being used as ring ports.
If media redundancy in ring topologies is completely disabled, ring ports configured
last are displayed.
