Siemens SIMATIC NET SCALANCE SC-600 Configuration Manual

Configuring with Web Based Management
4.5 "Layer 2" menu
SCALANCE SC-600 Web Based Management (WBM)
Configuration Manual, 10/2021, C79000-G8976-C475-03
239
Configuration procedure
1. Select the "Spanning Tree" check box.
2. From the "Protocol Compatibility" drop-down list, select the type of compatibility.
3. Click the "Set Values" button.

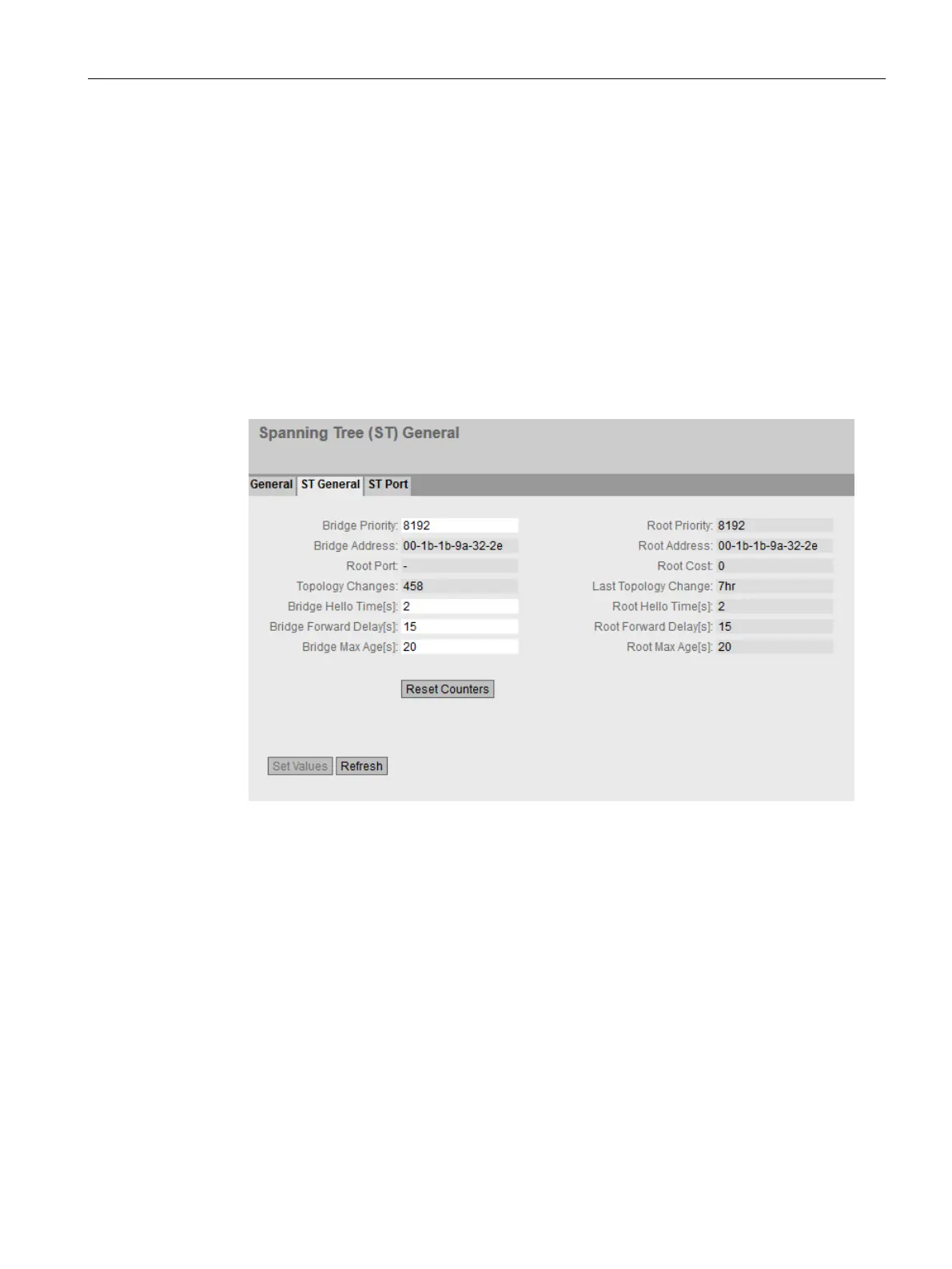

4.5.5.2 ST general
The page consists of the following parts.
• The left-hand side of the page shows the configuration of the device.
• The right-hand part shows the configuration of the root bridge that can be derived
from the spanning tree frames received by a device.
