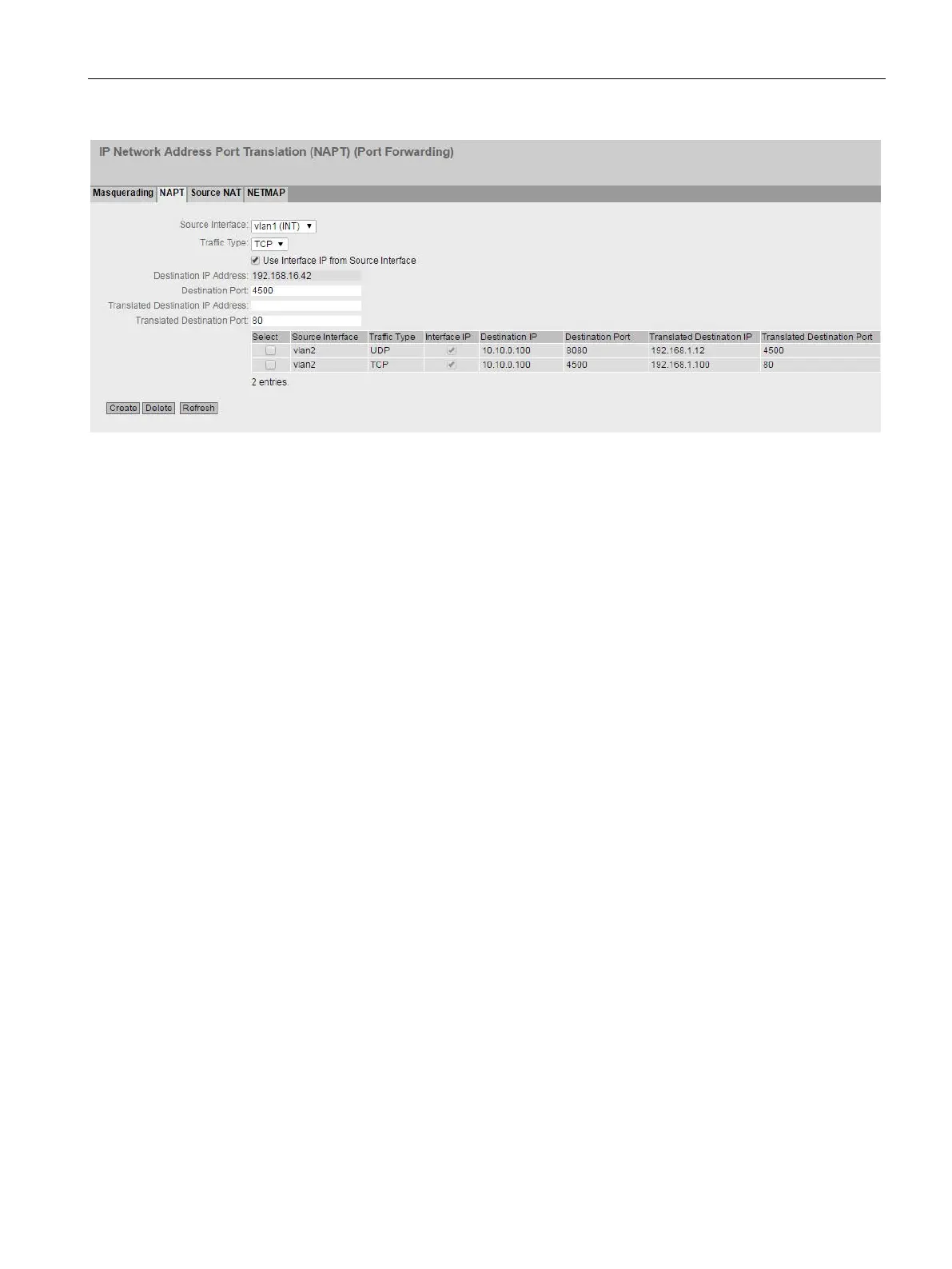

Description
The page contains the following boxes:
• Source Interface
Select the interface at which the queries will arrive.
• Traffic Type
Specify the protocol for which the address assignment is valid.
• Use Interface IP from Source Interface
When enabled, the IP address of the selected interface is used for "Dest. IP Address".
• Destination IP Address
Enter the destination IP address. The frames are received at this IP address. Can only
be edited if "Use Interface IP from Source Interface" is disabled.
• Destination Port
Enter the destination port. Incoming frames with this port as the destination port are
forwarded. If the setting is intended to apply to a port range, enter the range with
start port "-" end port, for example 30 - 40.
• Translated Destination IP
Enter the IP address of the node to which this frame will be forwarded.
• Translated Destination Port
Enter the number of the port. This is the new destination port to which the incoming
frame will be forwarded. If the setting is intended to apply to a port range, enter the
range with start port "-" end port, for example 30 - 40.
