Siemens SIMATIC S7-1500T Getting Started

Software section
3.3 Configure visualization
S7-1500
100 Getting Started, 05/2014, A5E03981761-AC
3.3.5.2
System diagnostics views
Introduction
There are four different views available in the system diagnostics display and the system
diagnostics window.
● Device view
● Diagnostic buffer view
● Detail view
● Matrix view (for master systems, PROFIBUS, PROFINET only)

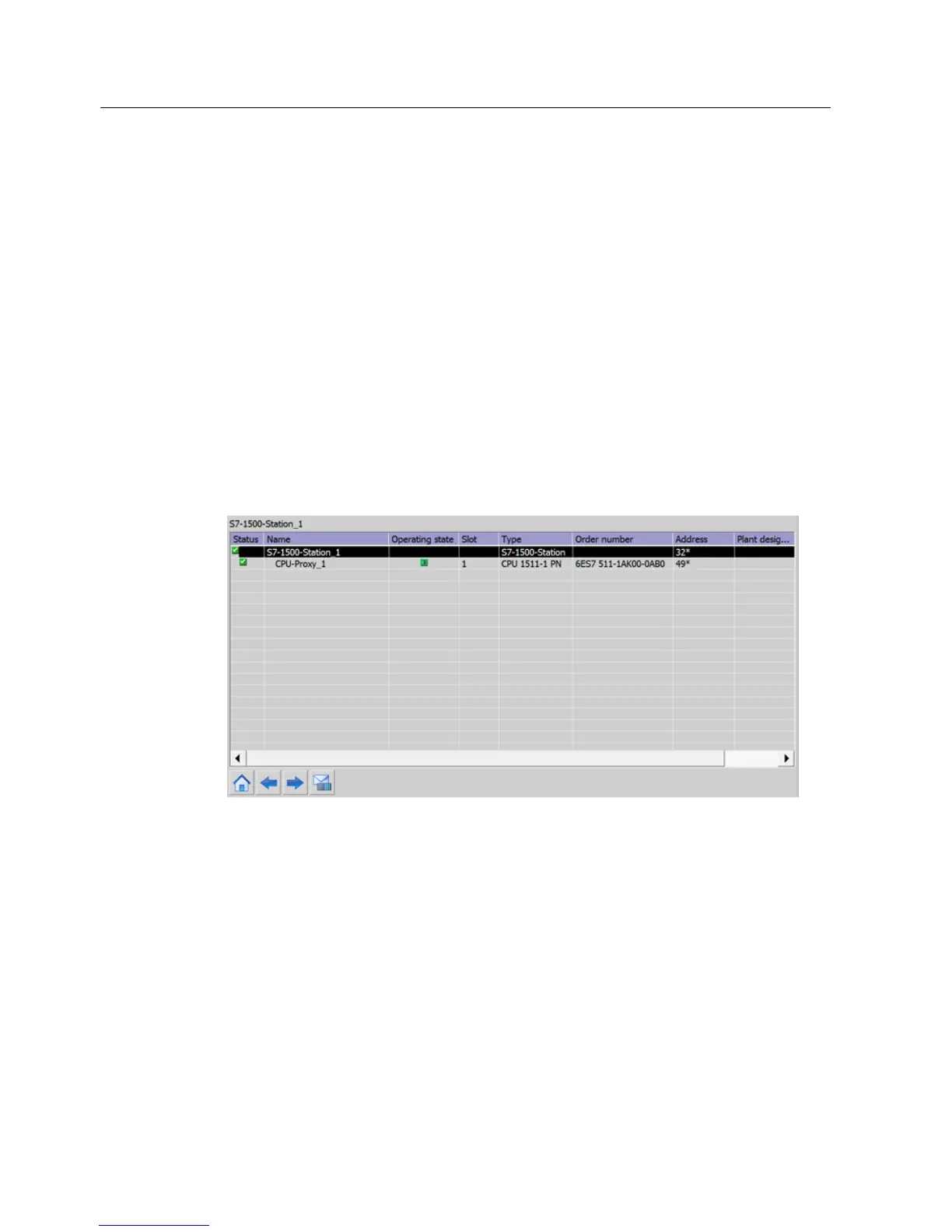

Device view
The device view shows all the available devices of a layer in a table. Double-clicking on a
device opens either the child devices or the detail view. Symbols in the first column provide
information about the current status of the device.
