Software section
3.1 Creating the project and hardware
S7-1500
36 Getting Started, 05/2014, A5E03981761-AC
Creating a project
Introduction
In the following step, you will create a new project.
All data which is generated during the creation of an automation solution is saved in the
project file. The data is stored in the form of objects. Within the project, the objects are
arranged in a tree structure (project hierarchy).
The project hierarchy is based on the devices and stations along with the configuration data
and programs belonging to them.
You need the following hardware and software equipment to create the project:
● Hardware:
– The CPU 1511-1 PN that was installed and wired in the hardware section of the
Getting Started.
– An Ethernet connection to your programming device/PC.
● Software:
The following software packages must be installed and executable on your programming
device/PC:
– SIMATIC STEP 7 Professional V13
– SIMATIC WinCC Advanced V13 or SIMATIC WinCC Professional V13

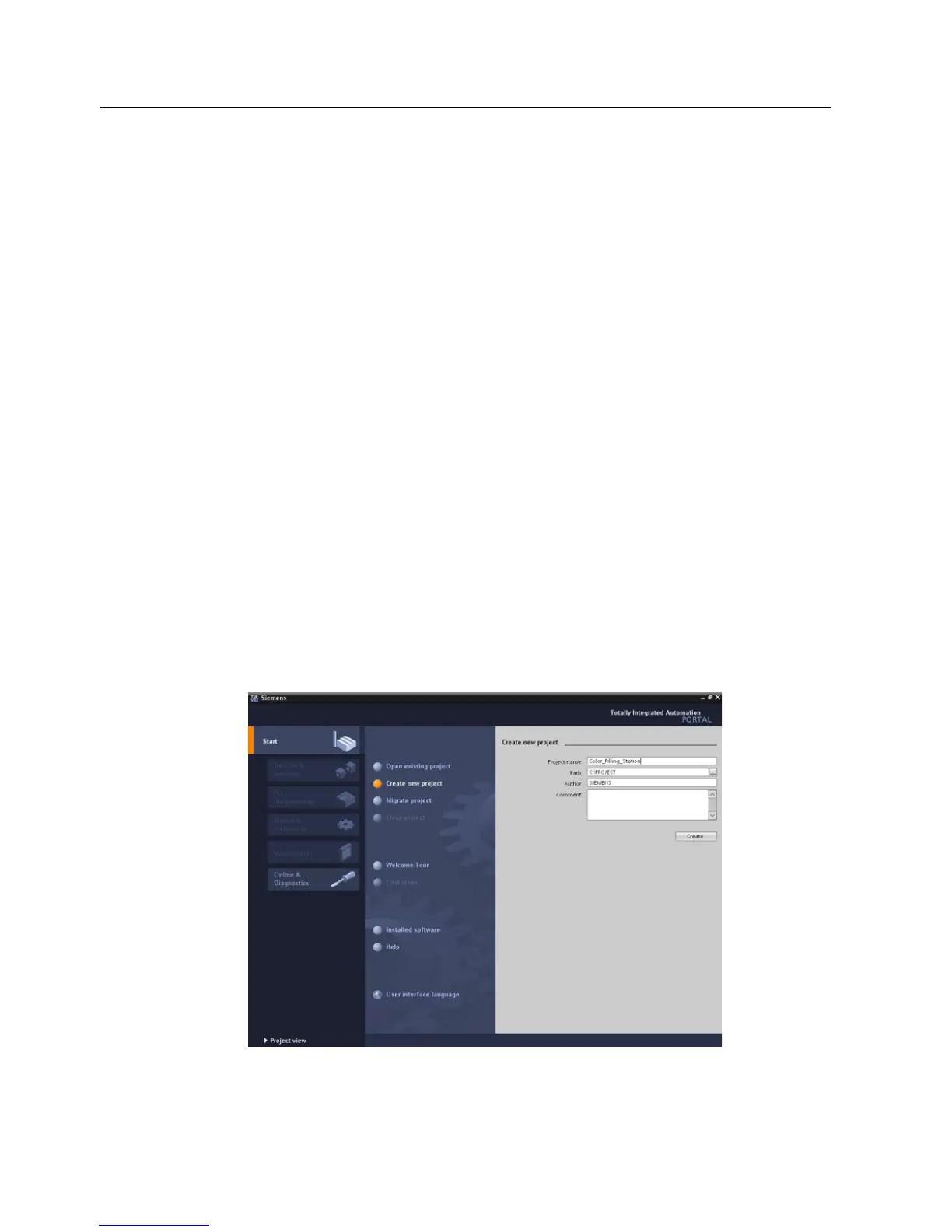

To create a new project, follow these steps:
1. Click "Create new project".
2. Enter a name for your project.
3. Click "Create" to create the new project.
