Siemens SIMATIC S7-1500T Getting Started

Software section
3.3 Configure visualization
S7-1500
84 Getting Started, 05/2014, A5E03981761-AC
3.3.2.4
Additional control elements
Additional control elements
The process steps "Mixing color" and "Filling color" are to be displayed as animations with
dynamic visualization objects.

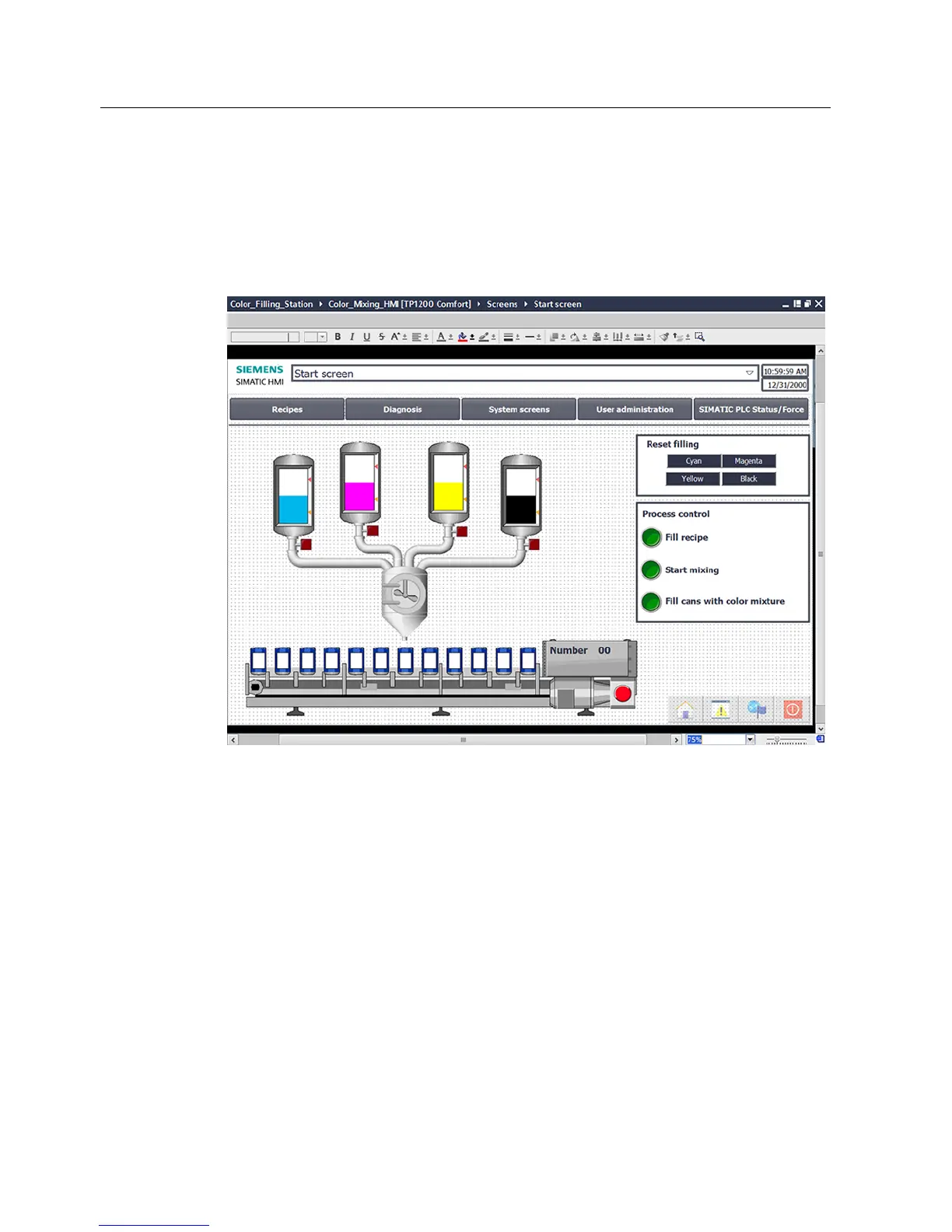

The start screen of the example project includes additional control objects:
● Buttons for screen changes
● Buttons to reset the fill levels
● Buttons for operating and monitoring the system: Fill recipe, start mixing process, fill color
mixture
