Siemens SIMATIC S7-1500T Getting Started

Hardware section
2.3 Wiring
S7-1500
Getting Started, 05/2014, A5E03981761-AC
27
2.3.7
Wiring the digital output module
Procedure

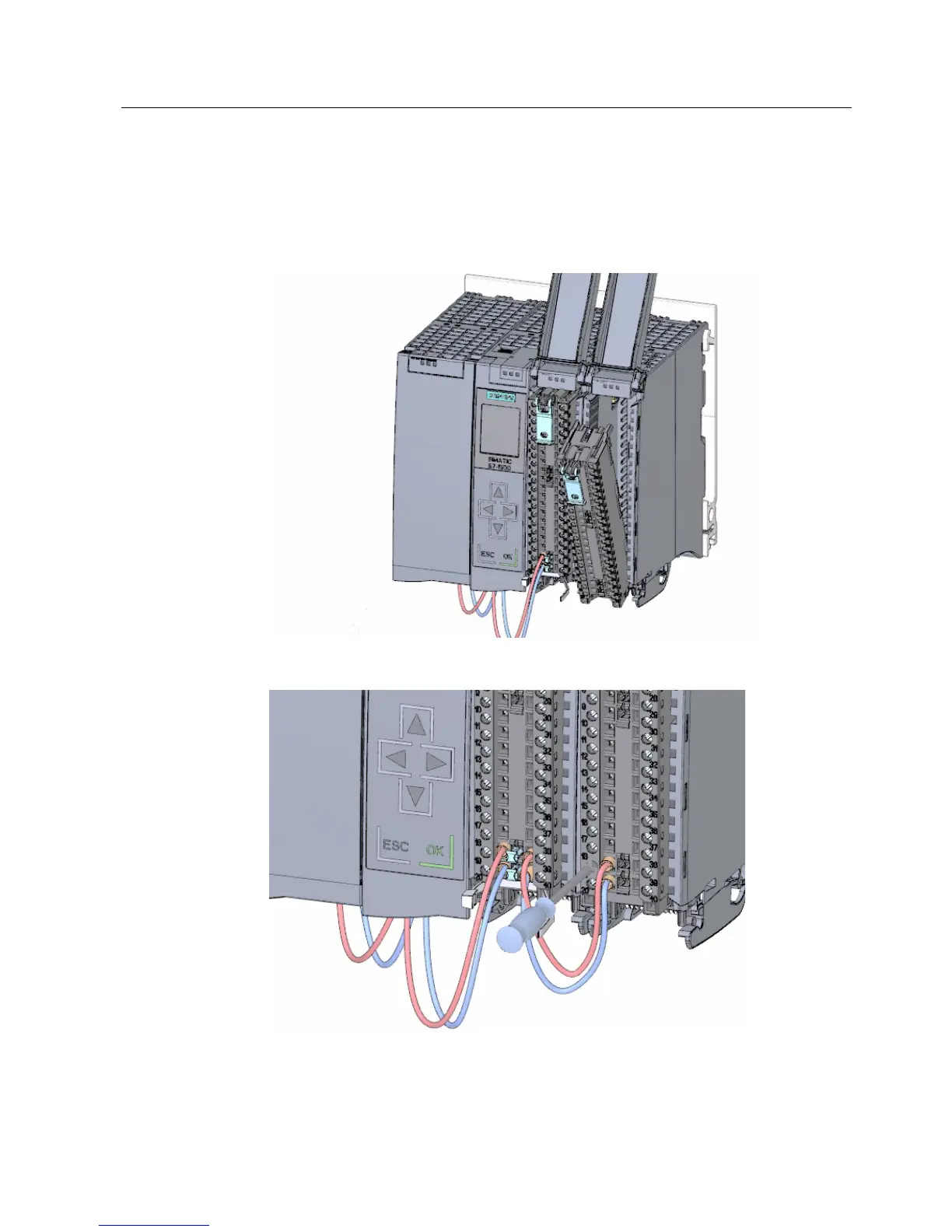

1. Insert the front connector into the pre-wiring position.
2. Use terminals 40 (M) and 39 (L+) from the digital input module to feed the supply voltage
DC 24 V from the digital input module to terminals 20 (M) and 19 (L+).
