Software section
3.3 Configure visualization
S7-1500
Getting Started, 05/2014, A5E03981761-AC
85

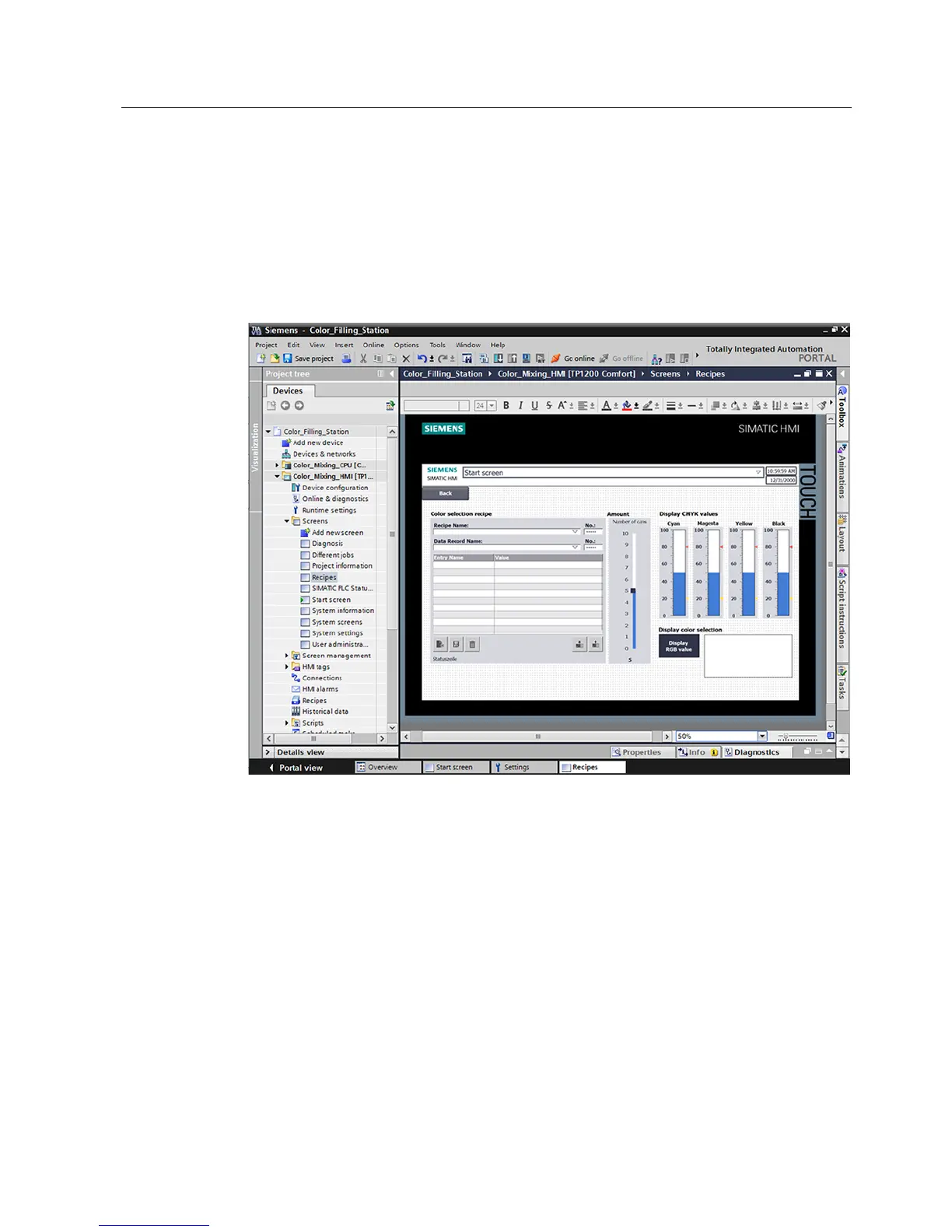

A recipe contains related production parameters, such as mixing ratios.
The required mixing ratio can be transferred from the HMI device to the color mixing system
in a single step, for example, to switch production from dark orange to signal yellow.
The color mixing system can produce the mixed colors "Orange", "Amber", "Green" and
"Red".
A recipe data record is created for each color. The recipe data record includes the
percentage of basic colors which result in the respective mixed color.
The recipe consists of relevant parameters and the recipe data records in which the mixing
ratios for the individual shades of color are stored.
