Software section
3.3 Configure visualization
S7-1500
Getting Started, 05/2014, A5E03981761-AC
97
3.3.4.3
Connecting HMI tags
Introduction
Once you have created the connection of CPU and HMI device, connect the tags of the two
devices.
Procedure

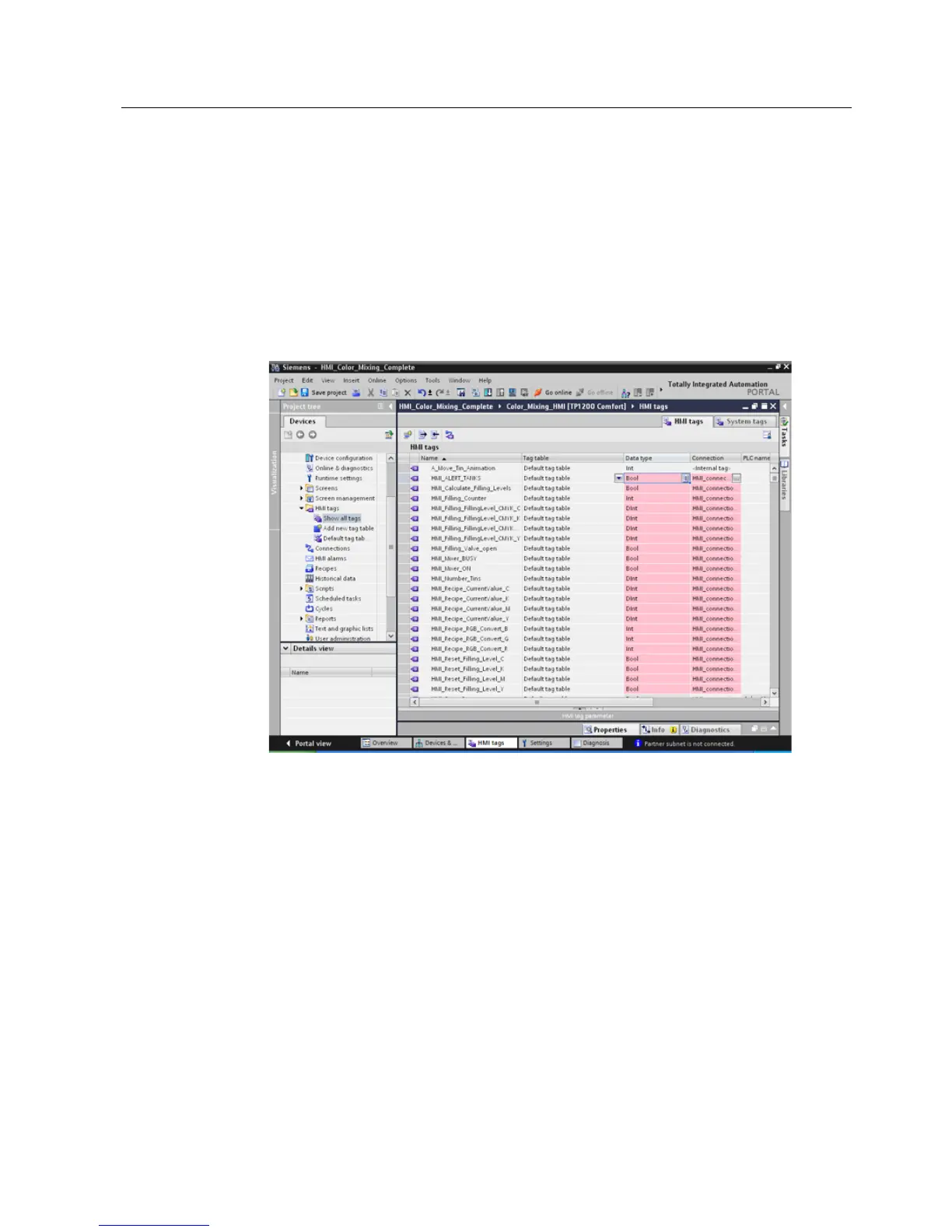

1. Open the HMI tag editor.
2. Select the HMI connection you have just configured in the "Connections" column.
