3.3 Configure visualization
S7-1500
Getting Started, 05/2014, A5E03981761-AC
83
You use the screens loaded onto the respective HMI device to operate and monitor
machines and plants in runtime.
You manage the screens in WinCC under "Screens" in the project navigation.

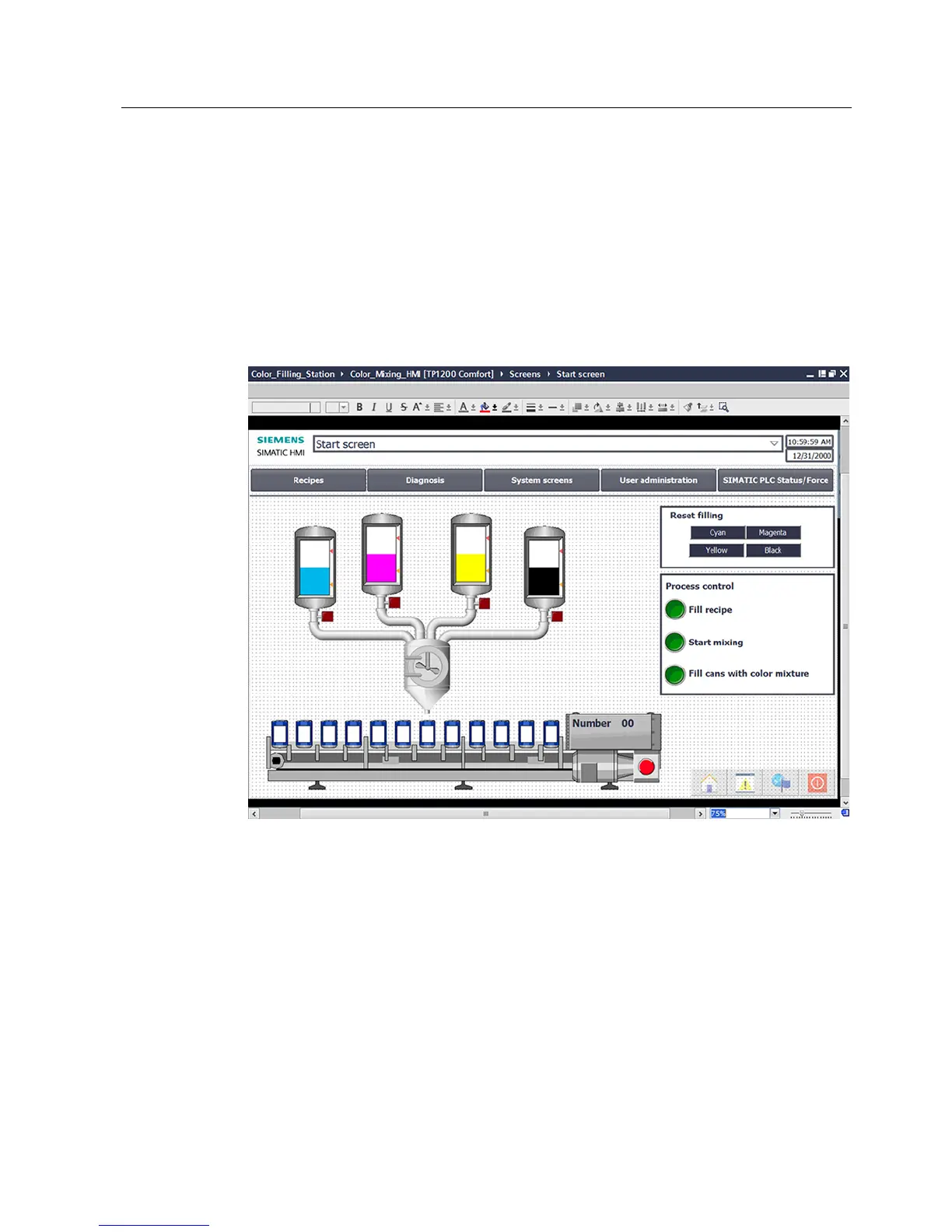

The start screen of the HMI device is used to visualize the color mixing system as well as the
most important status information and key figures.
The color mixing system includes the following elements:
● A color reservoir for each print color with fill level display
● Mixer
● Feeder pipes to the mixer
● Conveyor belt with emergency stop switch
