3.3 Configure visualization
S7-1500
Getting Started, 05/2014, A5E03981761-AC
93
3.3.3
Insert HMI device from libraries
3.3.3.1
Storing an object in a library
Introduction
The global library includes a preconfigured HMI device.
Procedure
1. Open the global library.

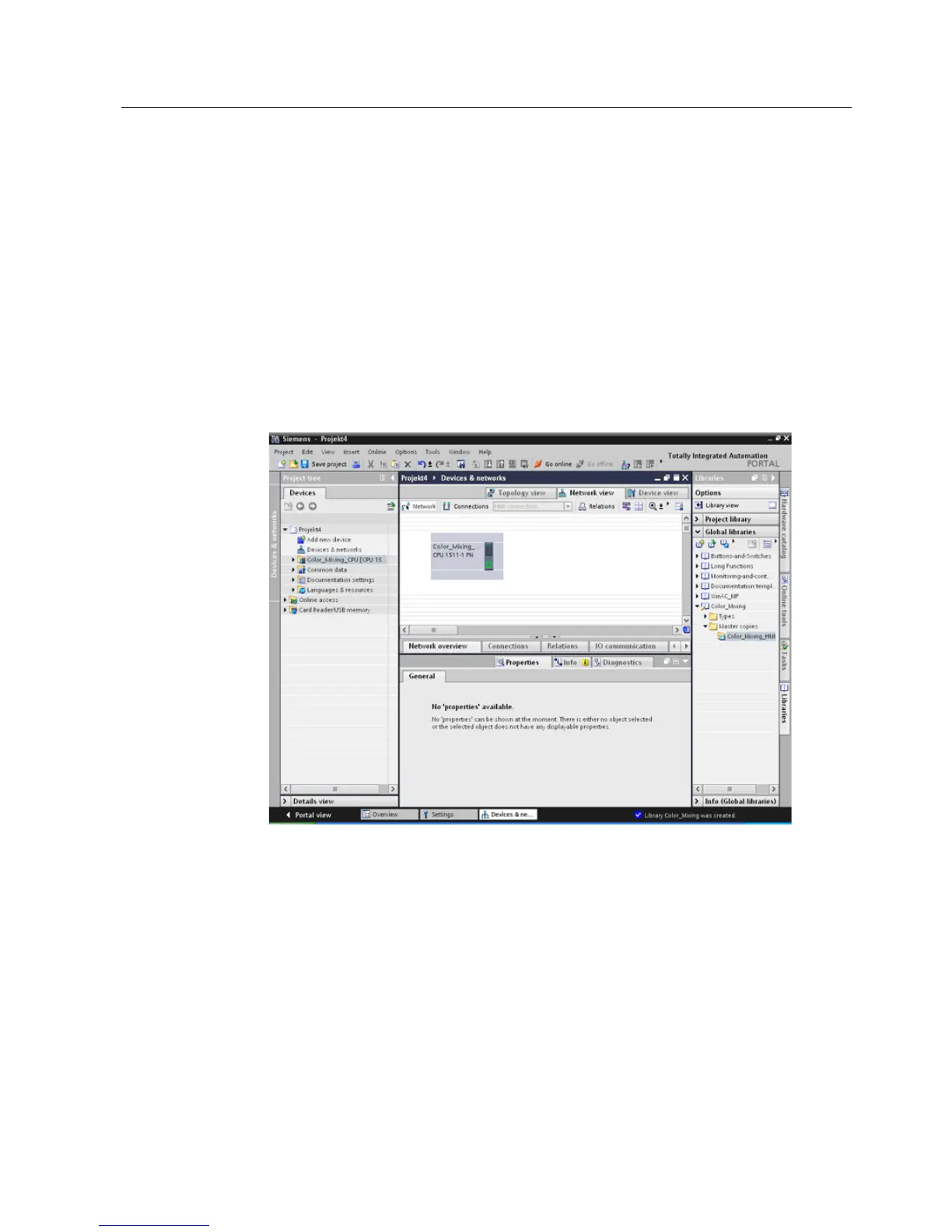

2. Drag-and-drop the HMI device "Color_Mixing_HMI" into the "Devices & Networks" editor.
3. The mouse pointer changes into a crosshair with an object symbol attached.
Result
The preconfigured HMI device is created and can be connected to the CPU.
