Software section
3.3 Configure visualization
S7-1500
102 Getting Started, 05/2014, A5E03981761-AC

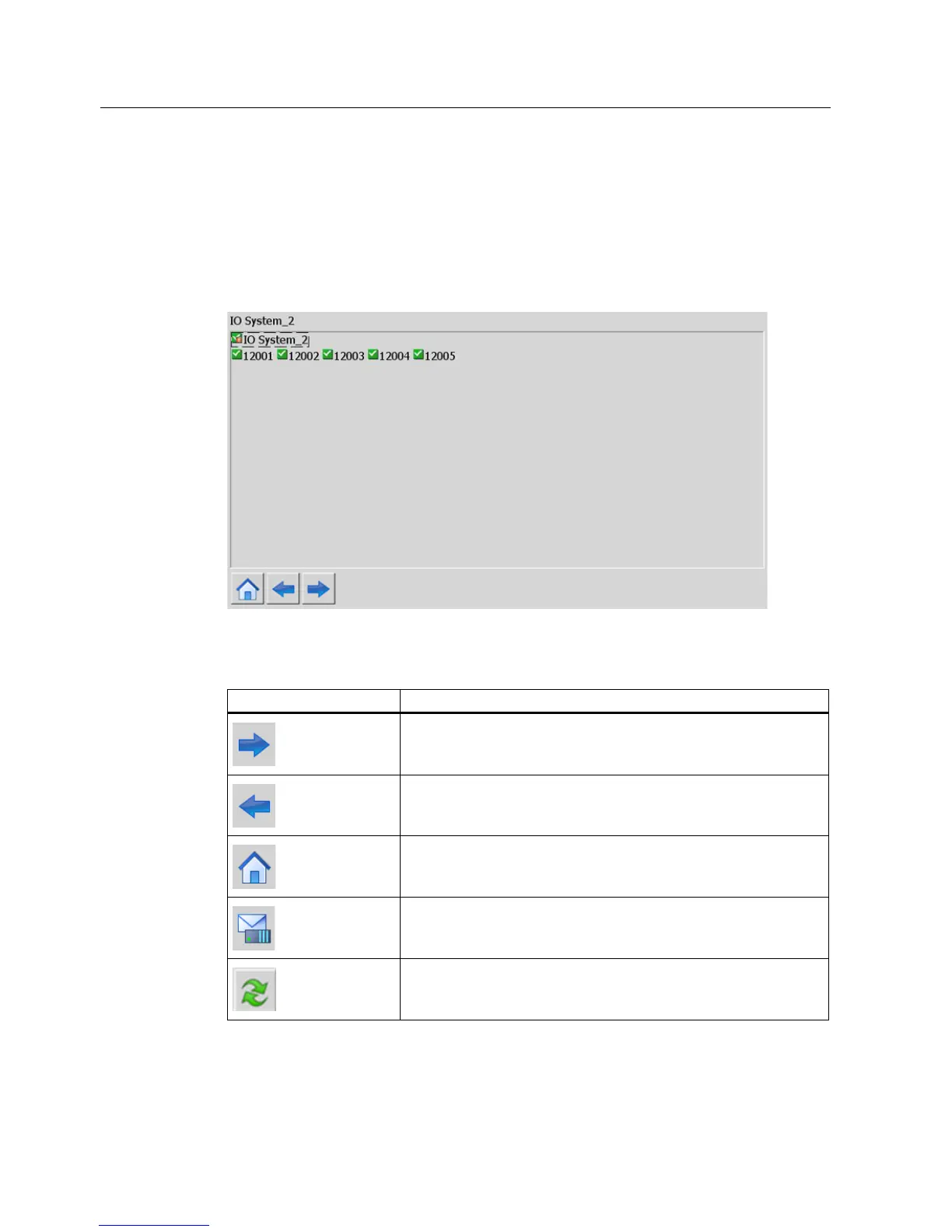

The matrix view is only available for master systems. The matrix view shows the status of
the subdevices of the master system.
● In PROFIBUS, the numbers assigned by Profibus are used as identification (DP station
number).
● The IO devices are numbered consecutively from 1 in PROFINET.
Opens the child devices or the detail view if there are no child devices.
Opens the parent device or the device view if there is no parent device.
Opens the device view.
Opens the diagnostic buffer view. Only visible in the device view.
Refreshes the view.
Configured softkey, for example F2
