Siemens SIMATIC S7-1500T Getting Started

Automation task
1.2 Sample project
S7-1500
Getting Started, 05/2014, A5E03981761-AC
13

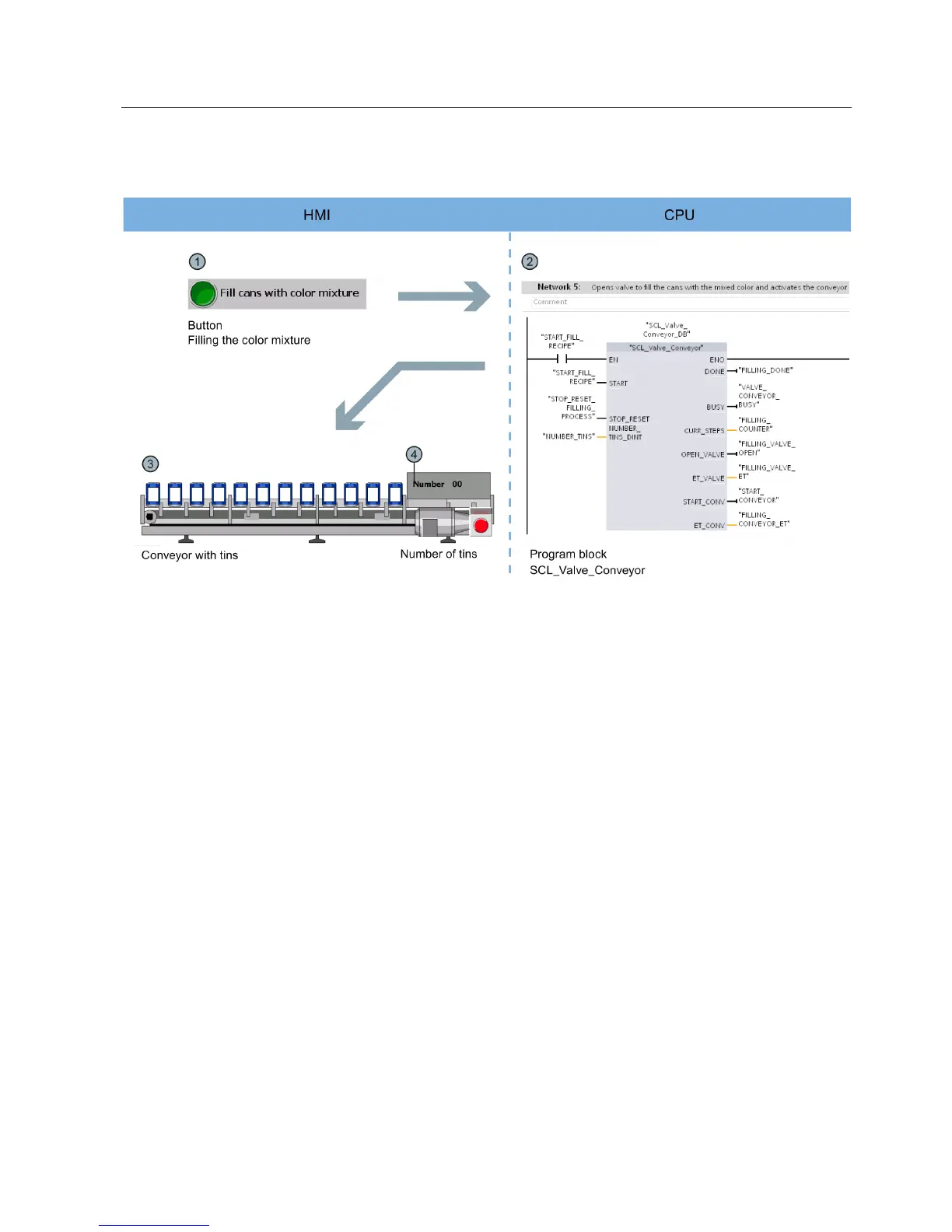

Filling the color mixture
①
The "Fill Color Mixture" button starts the filling of the tins in the HMI screen "Start
screen".
②
The "SCL_Valve_Conveyor" program block is activated
for this purpose at the CPU
end; it controls the valves and the conveyor belt.
③
The tins are animated according to the movement of the conveyor belt in the HMI
screen.
④
A counter indicates the number of tins that have already been filled.
