Hardware section
2.2 Installing the assembly
S7-1500
18 Getting Started, 05/2014, A5E03981761-AC

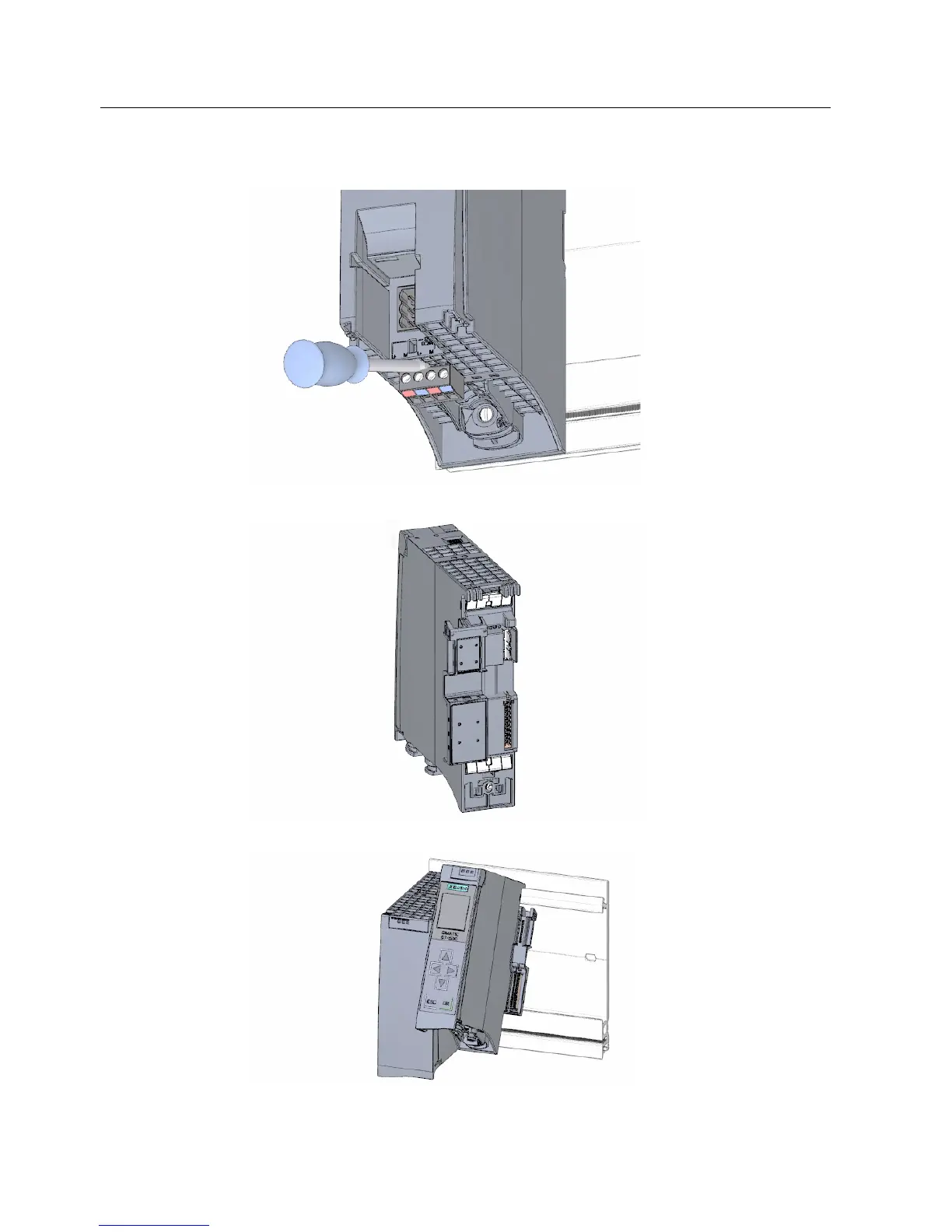

3. Remove the 4-pole connection plug and screw the load current supply (PM) tight.
4. Insert the U-connector into the back of the CPU.
5. Mount the CPU on the mounting rail and screw tight.
