12.2 Wiring, connecting
SIMOCODE pro
230 System Manual, 05/2019, A5E40507475002A/RS-AD/004
Safety guidelines
1) Short-circuit proof wiring or line protection recommended
Note

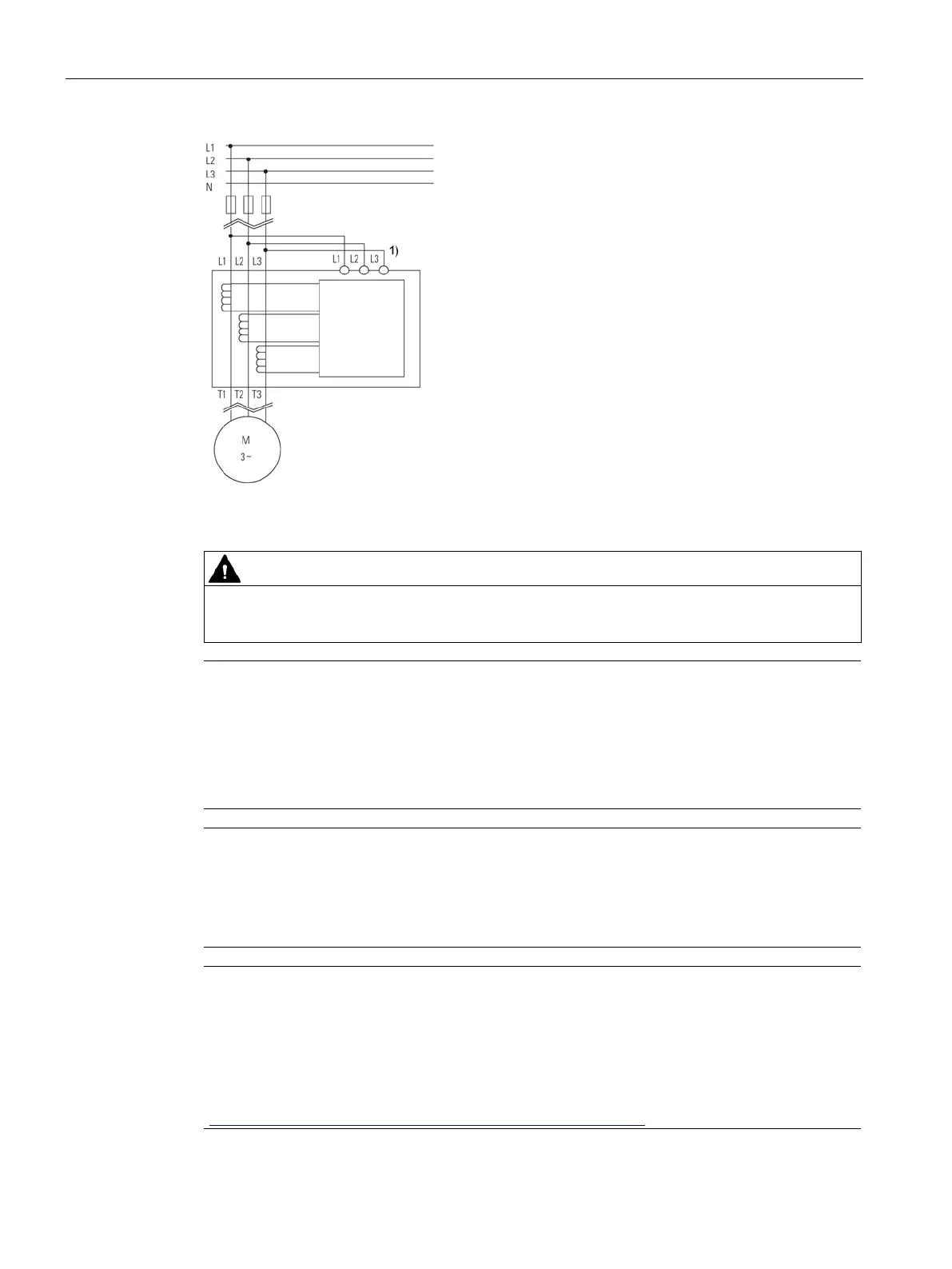

Acquisition of the line supply voltage
A voltage tap betwe
en the circuit breaker or fuse and the contactor is recommended for
acquisition of the line supply voltage.
Thus, when the motor is shut down, its operable state can be derived from the presence of
the supply voltage.
Note
Measurement of voltage or power-related variables
Connect the
main circuit L1, L2, L3 of a current / voltage measuring module to the clamps
(L1, L2, L3) of the removable terminal with a 3
-core cable. The supply cables may require
additional cable protectio
n, for example via short-circuit proof cable or fuses.
onnecting or routing the cables of the individual phases of the main circuit, ensure
correct assignment of the phases on the current
/ voltage measuring module and correct
ion!
Please note the information in the Operating Instruction
s. You will also find the Operating
Instructions for SIMOCODE
pro at Operating instructions
https://support.industry.siemens.com/cs/ww/en/ps/16027/man)
