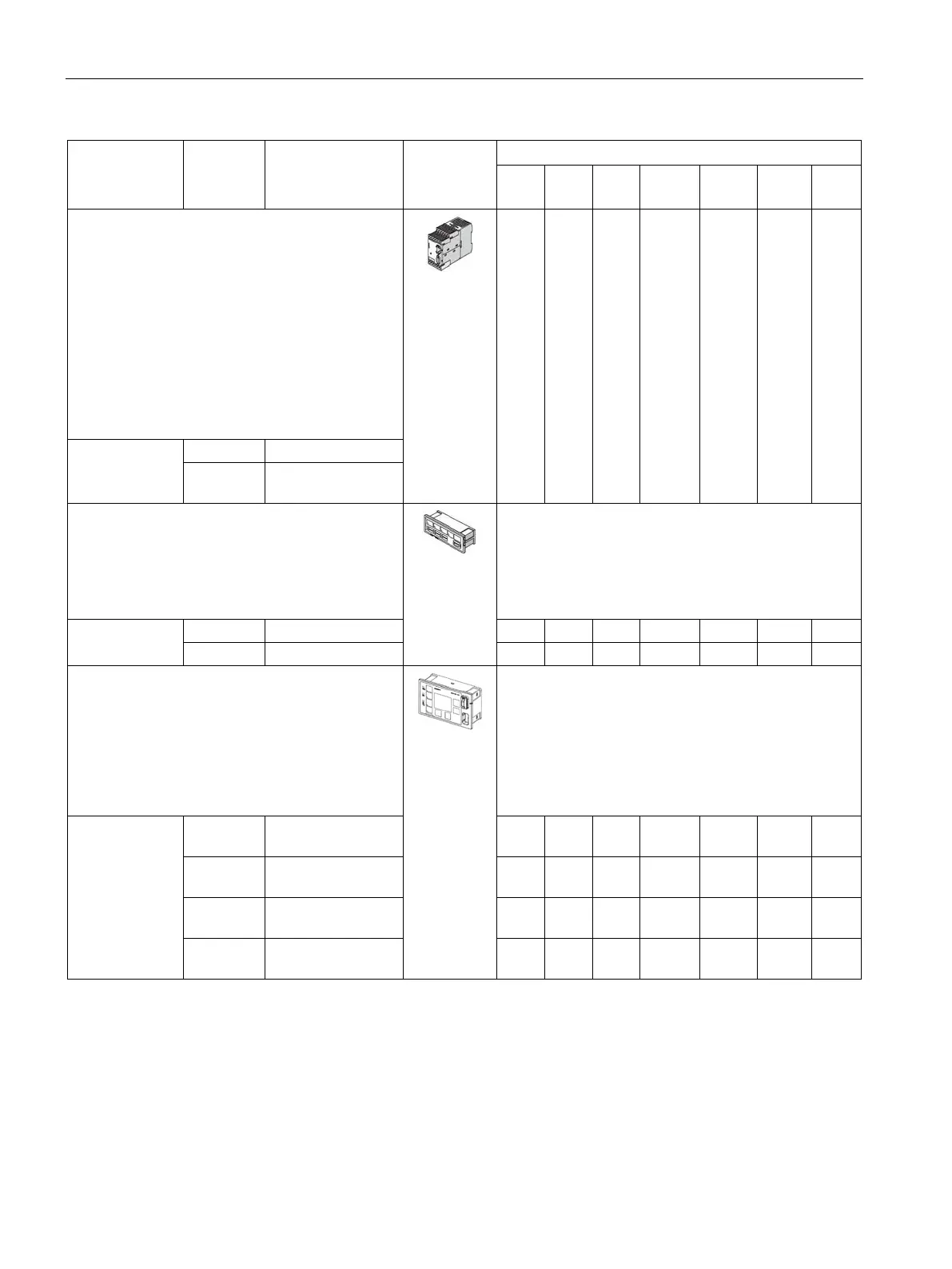

An overview of system components
SIMOCODE pro
68 System Manual, 05/2019, A5E40507475002A/RS-AD/004
Module
Control
supply
voltage
MLFB
Diagram
Number that can be connected to
pro C
pro S
V PN
GP
pro V
PB
pro V
MR
pro V
PN
pro V
EIP
SIMOCODE pro V EIP
The variable High Performance system for
EtherNet/IP that offers numerous functions in
addition to all of the SIMOCODE pro C/S
functions.
4 inputs/3 outputs freely parameterizable, input for
thermistor, monostable relay outputs, expandable
with expansion modules
From product version *E04* with
PTB 18 ATEX 5003 X: Suitable for dry-running
protection for centrifugal pumps by means of
active power monitoring
— — — — — — —
24 V DC
3UF7013-1AB00-0
110-240 V
AC/DC
3UF7013-1AU00-0
Operator panel (OP)
Installation in control cabinet door or front plate, for
connection to basic unit, system interface for
connecting a PC, 10 LEDs for status indication
and user-assignable buttons for controlling the
motor.
—
3UF7200-1AA00-0
1
1
—
1
1
1
1
— 3UF7200-1AA01-0 1 1 — 1 1 1 1
Operator panel with display (OPD)
4)
Installation in control cabinet door or front panel,
for connection to a pro V basic unit, system
interface for connecting a PC, 7 LEDs for status
indication and user-assignable buttons for
controlling the motor, multiple-language display,
e.g. for indication of measured values, status
information or fault messages.
— 3UF7210-1AA00-0 — — — 1 (from
*E03*)
1 1 1
— 3UF7210-1BA00-0 — — — 1 (from
*E03*)
1 1 1
— 3UF7210-1AA01-0
(titanium gray)
— — — 1 (from
*E03*)
1 1 1
— 3UF7210-1BA01-0
(titanium gray)
— — — 1 (from
*E03*)
1 1 1
