Siemens SIMOTION C230-2 Equipment Manual

Device Data
3-29
E Siemens AG, 2003 All rights reserved
SIMOTION C230-2, 04.2003 Edition
Position of the connectors

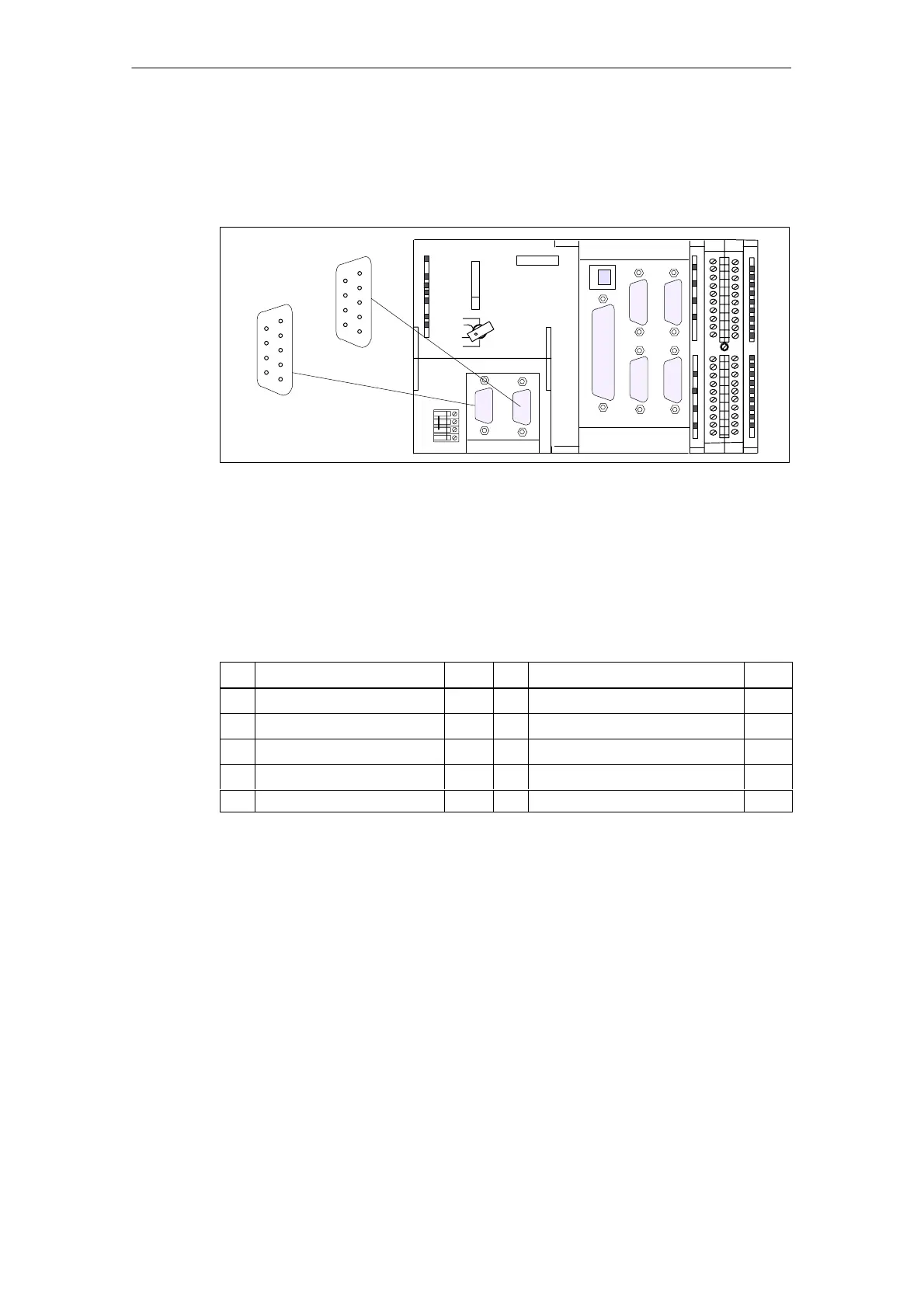

Fig. 3-4 shows the mounting position and designation of the connectors on the
module.
1
5
6
9
X8
DP1
X2
X3 X4
X6X5
X1
X9 DP2/MPIX8 DP1
C230-2
1
5
6
9
DP2/MPI
X9
SIEMENS
X7
Fig. 3-4 Position of connectors X8, X9
Connector pin assignment
Designation: X8, X9 DP1, DP2/MPI
Type: 9-pin Sub-D socket
Table 3-5 Assignment of X8, X9 connector
Pin
Name Type Pin Name Type
1 Unassigned 6 P5 VO
2 M24 VO 7 P24 VO
3 B I/O 8 A I/O
4 RTS I 9 Unassigned
5 GND VO
Signal names A, B Data input/output (RS485)
RTS Request to send
P5 5 V supply 60 mA, short-circuit-proof
GND Ground for 5 V voltage
P24 24 V supply 150 mA, short-circuit-proof, not isolated
M24 24 V reference potential
Signal type I Signal input
I/O Signal input/output
VO Voltage output
