Wiring
6-92
E Siemens AG, 2003 All rights reserved
SIMOTION C230-2, 04.2003 Edition
Command value allocation
Allocation of the command values for axes 1 to 4 is fixed.
Command value output signals (X2) for drives with analog interface:
S SW1, BS1, RF1.1, RF1.2 for axis 1
S SW2, BS2, RF2.1, RF2.2 for axis 2
S SW3, BS3, RF3.1, RF3.2 for axis 3
S SW4, BS4, RF4.1, RF4.2 for axis 4
Connection of drives (e.g. SIMODRIVE 611 universal) on the PROFIBUS DP
The figure below shows the connection of a C230-2 to a SIMODRIVE 611 univer-
sal drive unit.
Please note that the PROFIBUS DP3 module must be fitted on your closed-loop
control module.
Connecting cable
SIMODRIVE 611 universal drive unit
FDD FDD
SIMODRIVE
I/RF
SIEMENS
X2
X3 X4
X6
X5
X1
SIEMENS
X9
C230-2
X7
X8

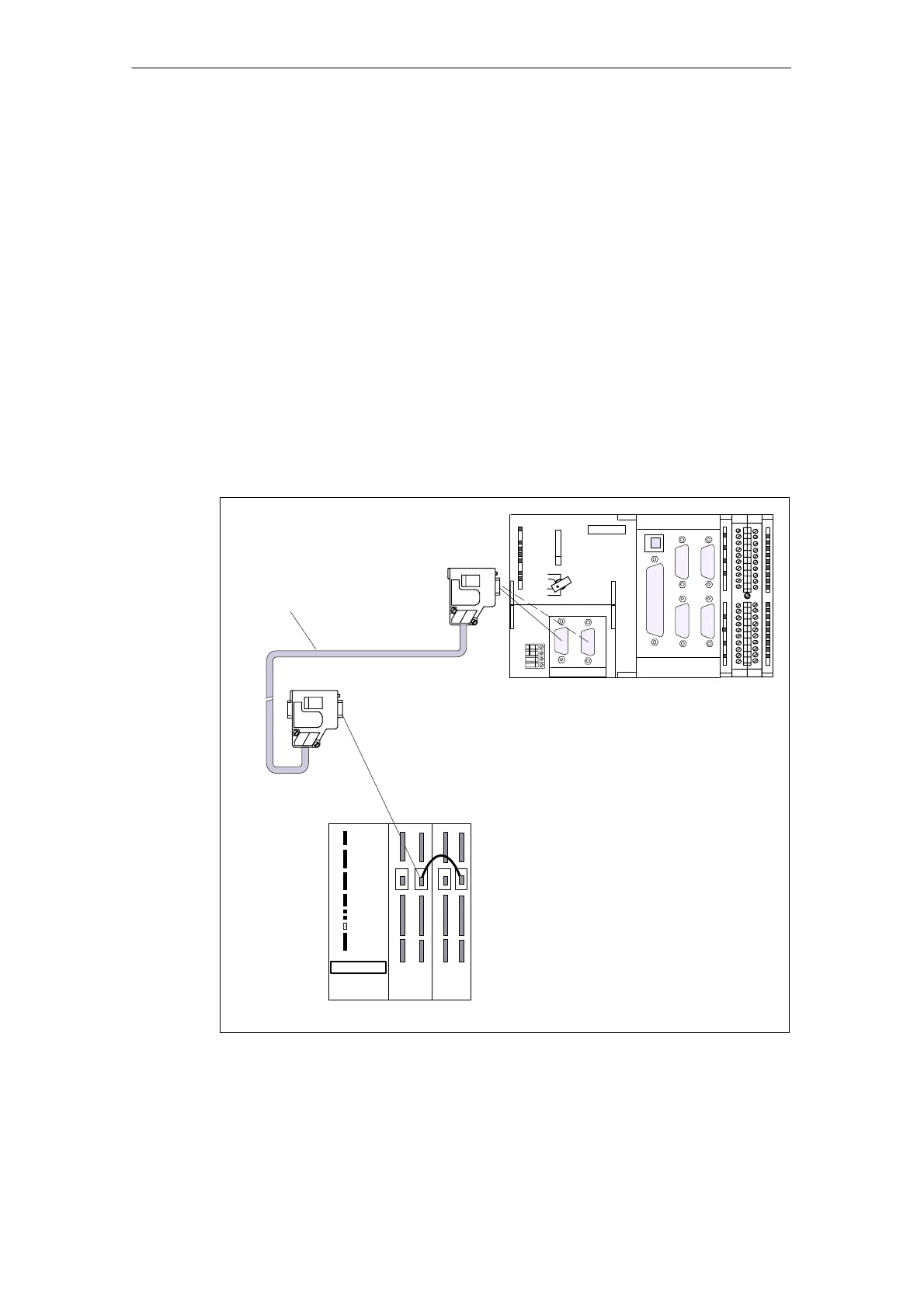

Fig. 6-8 Connection of SIMODRIVE 611 universal drive unit to PROFIBUS DP
