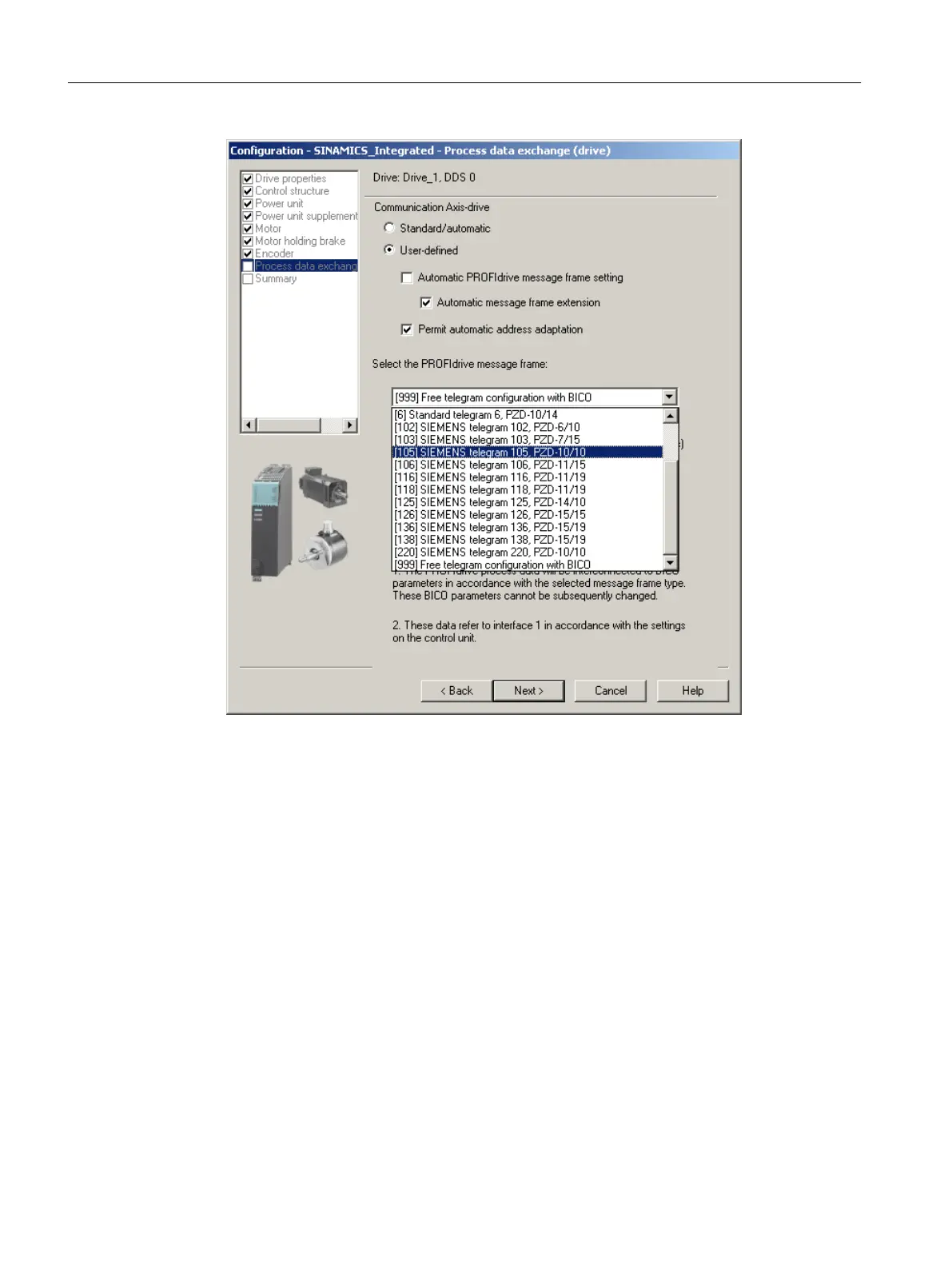

Figure 7-10 Configuring the process data exchange (user-defined)
Information about the manual setting options can be found in the online help and in the
manuals for the SINAMICS S120 drive system.
9. After
you have configured all of the settings in the drive wizard, the "Summary" dialog box
displays a list of all settings. You can now choose to activate your settings by clicking
"Finish", or to return to the component configuration for further editing.
Commissioning (software)
7.2 Performing an offline configuration
SIMOTION D410-2
156 Commissioning and Hardware Installation Manual, 01/2015
