SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
29
⑥
Converter circuit
⑦
Closed-loop control
A: -
B: -
C: -
D: B2HZ (1Q)
...
K: (B2) A (B2) C (4Q)
...
S: B6C (2Q)
T: -
U: -
V: (B6) A (B6) C (4Q)
0: No closed-loop control
1: 2Q, analog
2: 2Q, digital
6: 4Q digital
7: 4Q analog
⑧
Closed-loop field control
0: No field
1: Field without closed-loop
control
2: Field with closed-loop
control
⑨
Innovation
⑩
Z
: With option

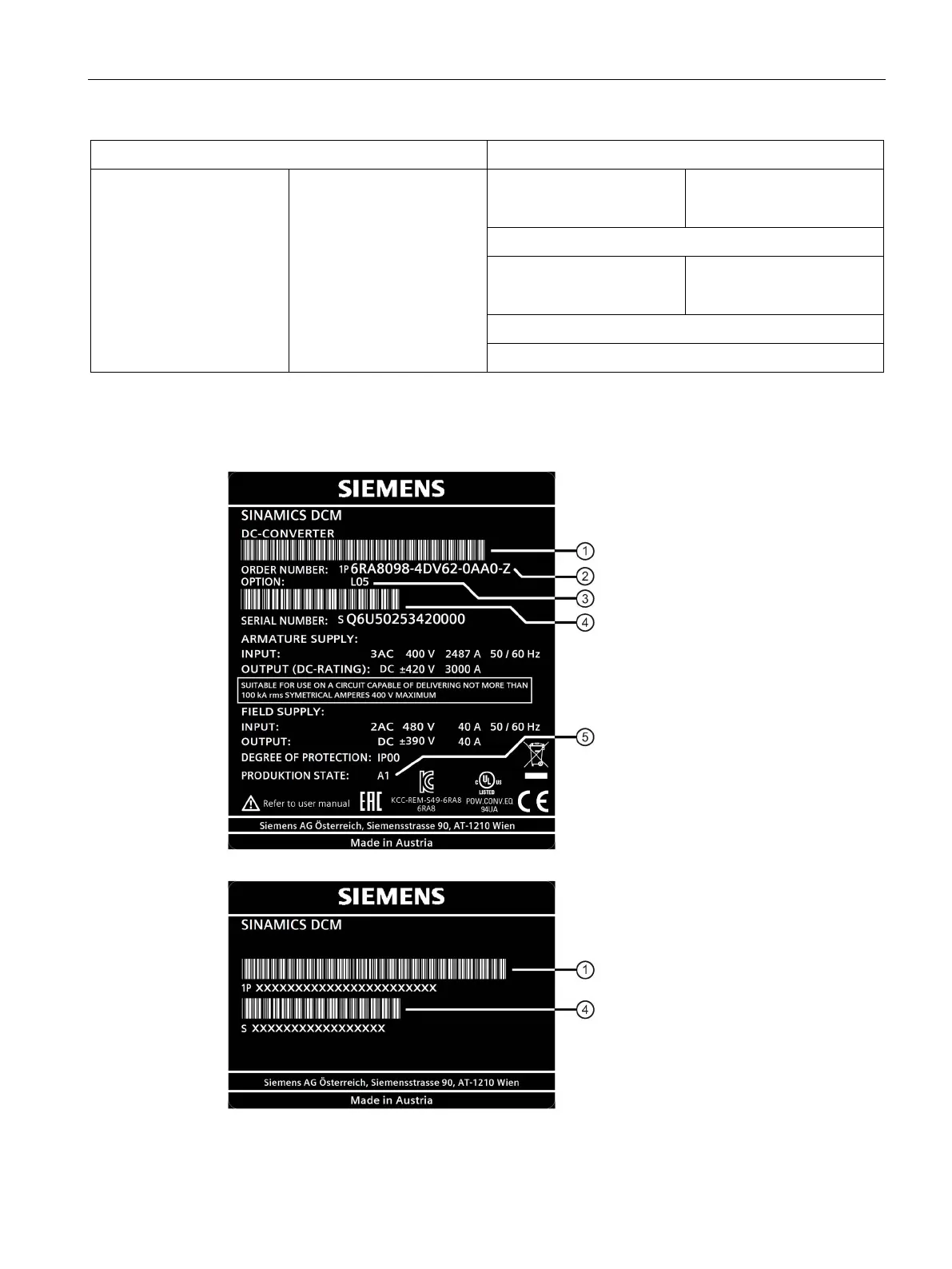

2.3
Rating plates, packaging label
Rating plate on front cover
Rating plate in device
①
Bar code for article number
(MLFB)
②
For options:
"Z" after the
article number
③
Order codes for options
(a
ccording to ordering
info
rmation for options)
(order-specific)
④
Serial number bar code
(order-specific)
⑤
Product version
