Siemens SINAMICS Series User Manual

Descriptions of functions
10.3 Communication according to PROFIdrive
SINAMICS DCM DC Converter
426 Operating Instructions, 12/2018, A5E34763375A
Bit
Name
Signal status, description

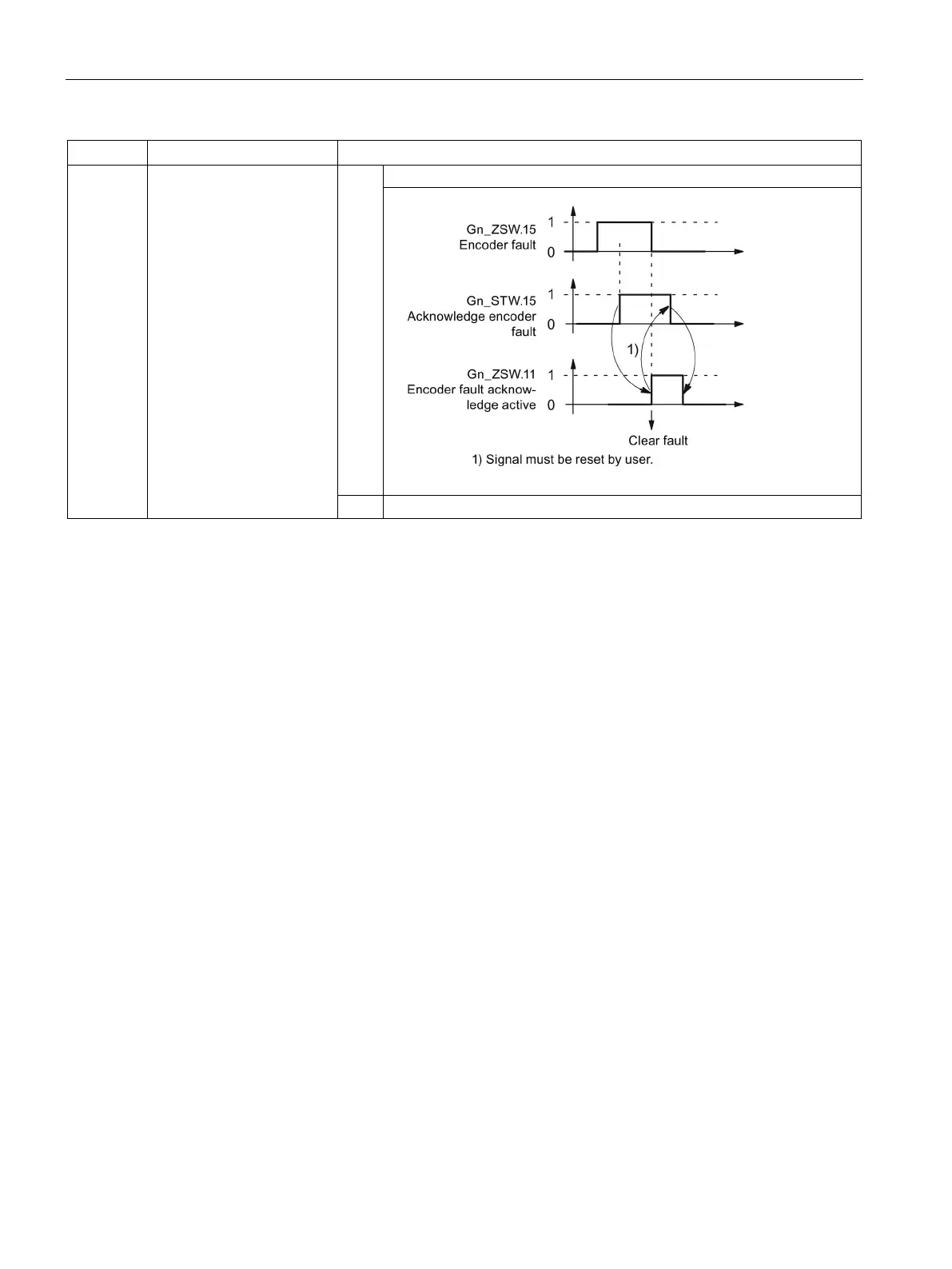

15 Acknowledge encoder error 0/1
Request to reset encoder errors
0
No request
Example: Reference mark search
Assumptions for the example:
● Distance-coded reference mark
● Two reference marks (function 1/function 2)
● Position control with encoder 1
