Descriptions of functions
10.7 EtherNet/IP
SINAMICS DCM DC Converter
534 Operating Instructions, 12/2018, A5E34763375A

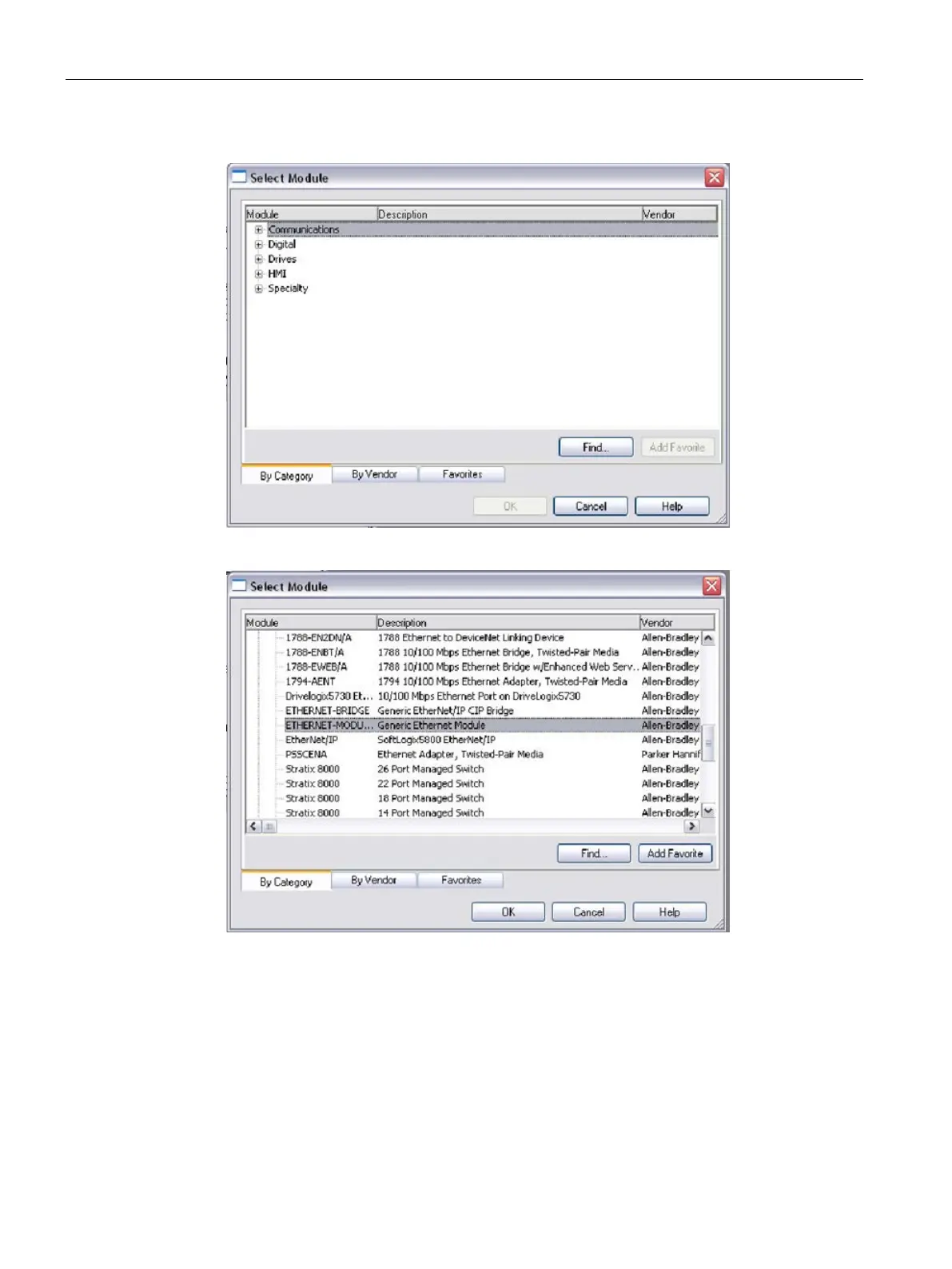

The "Generic Ethernet Module" is selected at Communication:
Figure 10-49 Selection of the module (2)
Figure 10-50 Selection of the module (3)
● After the module has been inserted by clicking OK, a new Ethernet/IP slave appears in
the structure tree.
A window is opened as follows by double-clicking with the left-hand mouse key or > right-
hand mouse key > Properties.
