Network operation
11.2 RCS802 tool
Cylindrical grinding
338 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
Operating sequence to make an RS232 connection to the control
● You are now in the <SYSTEM> operating area.
● Press the "PLC” softkey.

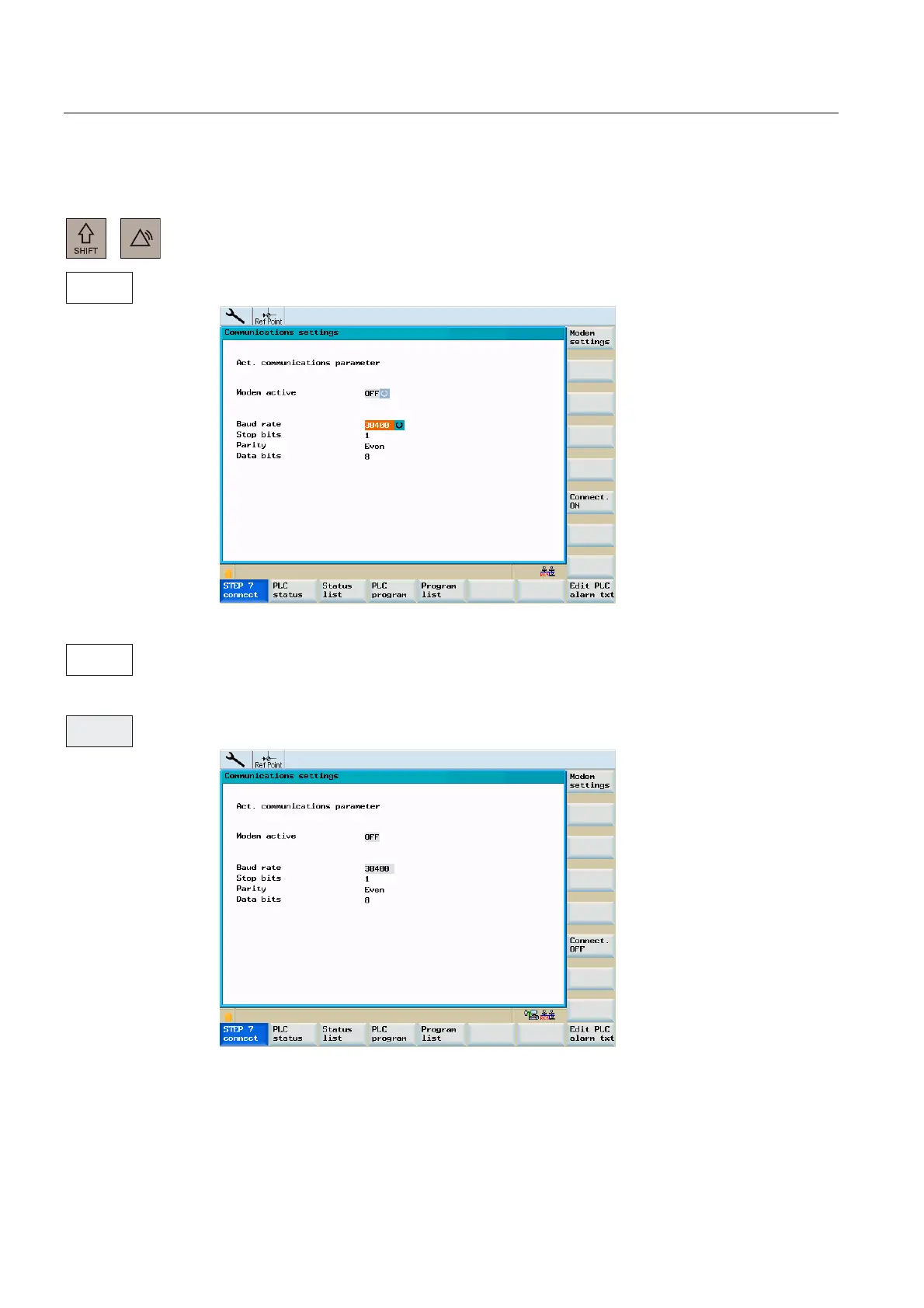

Figure 11-3 Communication settings RS232
● Set the parameters for communication in the "STEP 7 Connect" dialog.
● Activate the RS232 connection with the "Connect. ON" softkey.
Figure 11-4 RS232 connection active
No modifications to the settings are possible in this state.
The softkey label changes to "Connect. OFF".
