3. Press the "Setup archive" softkey.
4. Activate "Create setup archive".

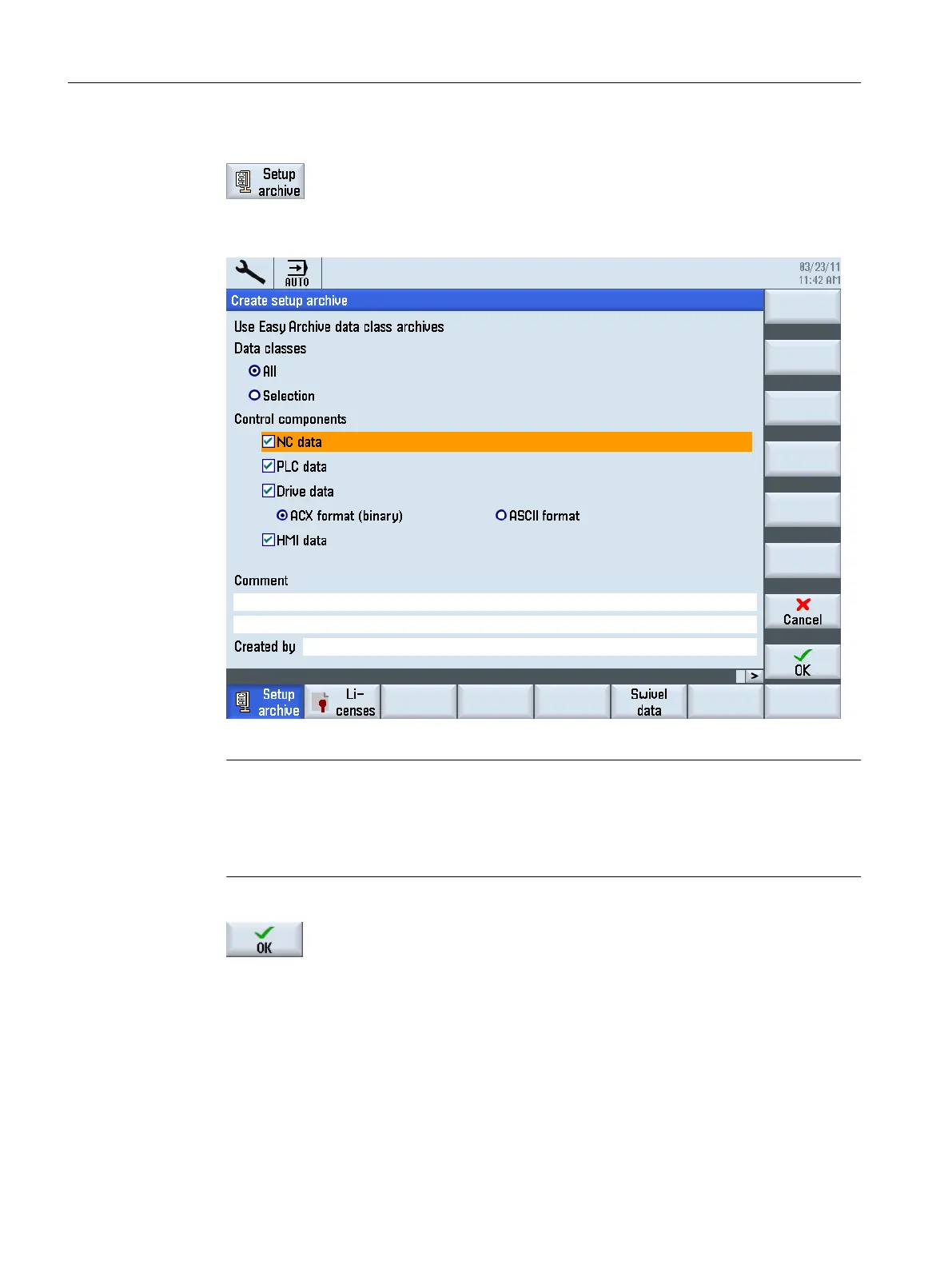

The "Create setup archive" window opens.
5. Select the desired control components.
Note
Easy Archive
● Select all of the components, unless it is known that individual components do not
deviate from the Siemens standard.
● Select all data classes, unless only certain data (e.g. INDIVIDUAL) are to be backed up.
6. Press the "OK" softkey to create the archive.
The "Create Archive: Select Archive" window opens.
7. Select the storage location of the archive:
– USER USB: USB-FlashDrive in slot X125 at the front
– User CF: CompactFlash Card in the slot at the front
Service cases - software
3.2 Generating a commissioning archive
Software and hardware
36 Service Manual, 08/2018, 6FC5397-5DP40-6BA1

Siemens SINUMERIK 828D Series Specifications

General

Display	10.4" TFT color display
Operating System	Embedded Linux
Power Supply	24V DC
Protection Class	IP65 (front), IP20 (rear)
Control Unit Type	CNC
Interfaces	Ethernet, USB, RS232
Programming	ShopMill, ShopTurn, G-code
