7. If a valid image has been found, the following message is output:

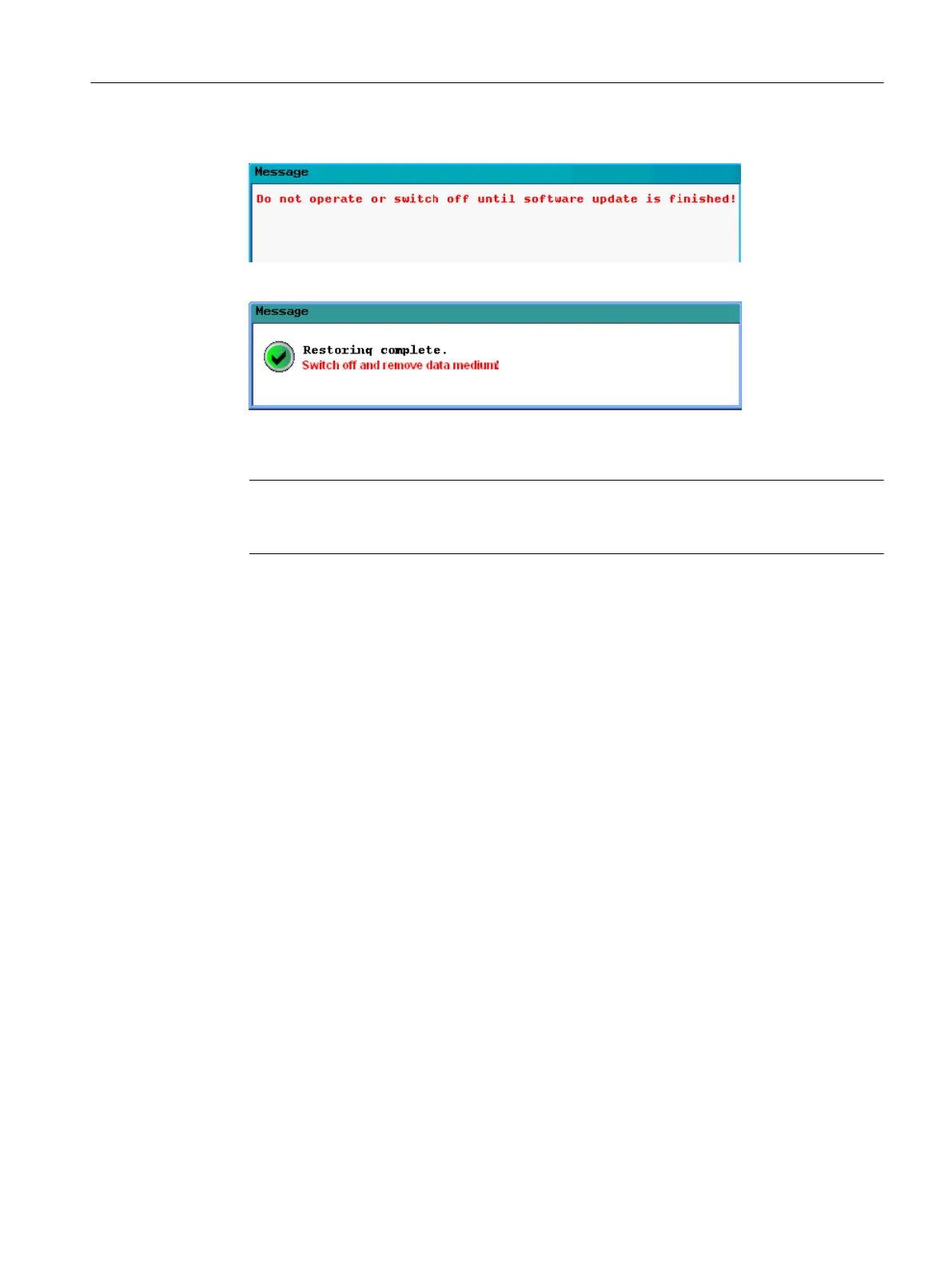

8. Wait until the following message is displayed:
9. Switch the control off.
10.Switch the control system back on again: The control boots normally.
Note
If the system was booted using a boot system, there is no valid license key on the system
CompactFlash Card. This must be transferred again.
Result
The following cases are possible:
● The control boots and is ready for operation if, when generating the system image, the
internal data backup and also a startup (commissioning) file were generated.
● If a valid image is not found, the update is interrupted with the following message:
Image file is corrupt!
In this case, switch-off the control, withdraw the data carrier and carry out the procedure
again by selecting a valid file.
Service cases - software
3.5 Generating a boot system on the CompactFlash card
Software and hardware
Service Manual, 08/2018, 6FC5397-5DP40-6BA1 61
