Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.8 SINAMICS S120 Combi
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
131

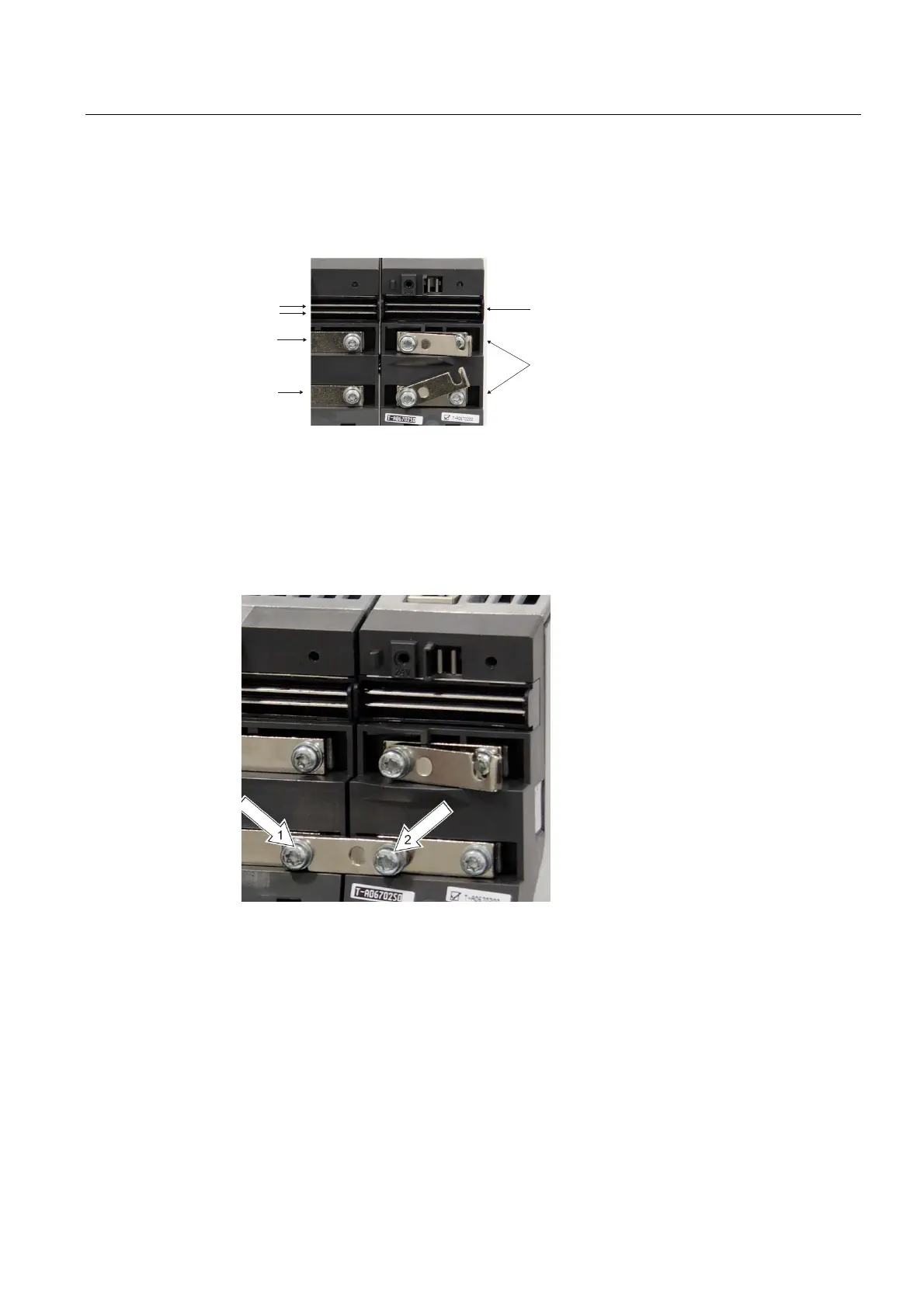

Procedure:
1. Use a suitable tool to open the protective cover of the component to be connected
2. Remove the DC link side covers of both components at the connection location
9EXVEDUV
'&OLQNEXVEDUV
0RWRU0RGXOH
%RRNVL]H&RPSDFW
'&3
'&1

0
0RWRU0RGXOH
%RRNVL]H&RPSDFW
3. To connect the DC link busbars you will need the following tool:
Screwdriver: Torx T20
Tightening torque: 1.8 Nm
4. Install the lower DC link busbar:
– Release the screws
– Turn over the DC link bridge.
– Observe the sequence when tightening the screws

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
